How to Sand and Fill Seams on Plastic Model Kits

A finished model seam should follow the surrounding shape, not merely feel smooth under one fingertip. The safest workflow fixes poor fit before glue, lets the joint cure, removes only raised material and uses filler only where an actual void remains. Controlled sanding preserves panel lines and curved profiles.

Diagnose the joint before sanding it

Dry-fit the pieces and ask whether the problem is a gap, a step or a mold line. A gap is missing material between edges; a step means the two surfaces sit at different heights; a mold line is a ridge left by the manufacturing process. A locating pin, trapped wire, paint on a mating face or warped edge may keep the parts from closing. Correct that cause before reaching for filler.

Let the adhesive or filler cure

A solvent-welded seam can feel firm on the surface while softer plastic remains beneath it. Sanding too soon may smear the joint or produce a line that sinks later. Follow the exact adhesive or filler directions for working and curing time. Do not use a general overnight rule in place of the product instructions.

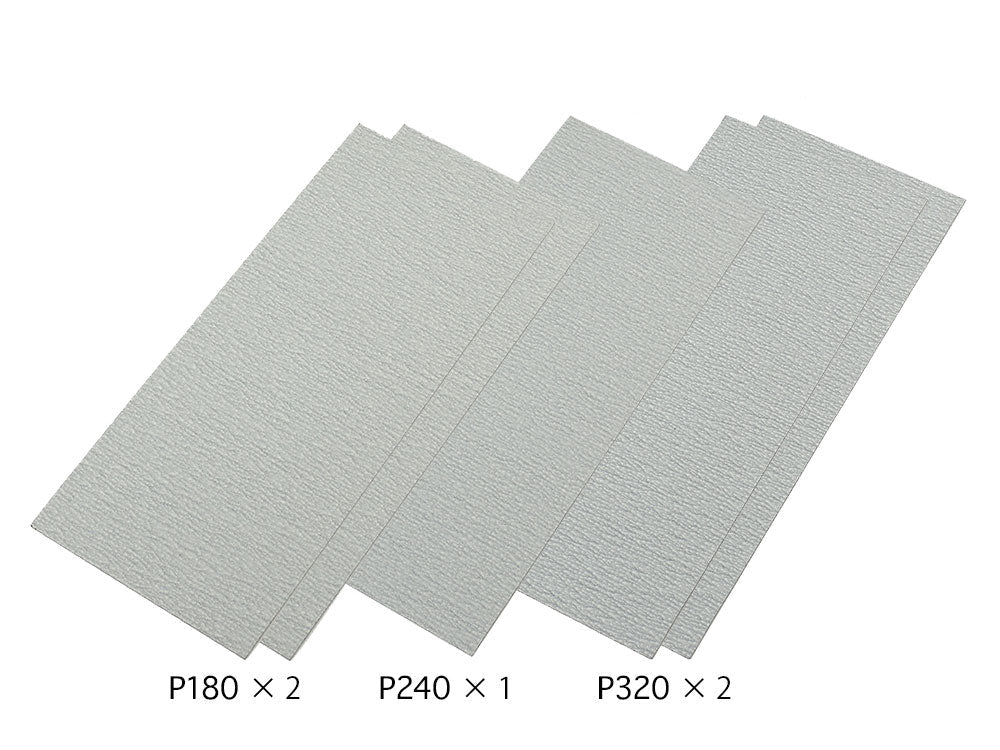

Start only as coarse as the defect requires

A raised seam or hardened filler may need a more aggressive abrasive, but the surrounding surface usually does not. Work in a narrow area, check progress often and change to finer grades as the contour returns. On a curved car body or aircraft fuselage, use a flexible backing that follows the curve. On a straight edge, a suitable rigid block can prevent waves.

Fill true voids, not structural mistakes

1. Align and bond the joint correctly.
2. Remove the raised ridge and inspect the remaining line.
3. Apply compatible model filler only to the gap or pinhole that remains.
4. Let it cure completely according to its instructions.
5. Level the repair and feather its edges into the surrounding plastic.

Thick filler over a flexible or misaligned joint can crack because the underlying problem still moves. Rebuild a weak joint before cosmetic finishing. If a seam crosses engraved detail, photograph or mark that detail before work so it can be restored carefully after the contour is correct.

Progressive sanding has a purpose

Each finer grade removes scratches from the previous one; it does not magically repair a deep groove. If coarse scratches remain, do not keep polishing around them with a very fine sheet. Step back to the least aggressive grade that can level the defect, then progress again. Clean residue between grades so loose particles do not create new scratches.

Protect surface detail

• Place low-tack masking tape beside the seam as a visual and physical boundary where compatible with the surface.
• Use narrow abrasive strips near scripts, rivets and raised trim.
• Sand along the intended contour rather than across every feature in one direction.
• Stop before an engraved line disappears; restore lost detail only with a suitable guide and tool.
• Remove dust before deciding whether more material needs to come off.

Inspect with light, touch and primer

Rotate the model under low-angle light. A moving reflection reveals a ridge, hollow or flat spot that overhead light can hide. Use a clean fingertip as a secondary check, not the only test. When the surface looks correct, apply a thin compatible inspection coat of primer. If a ghost seam or pinhole appears, repair only that defect and inspect again before color.

Dust safety: follow the filler and abrasive makers' precautions. Avoid breathing sanding dust, keep it out of eyes, and wet-sand only when the materials and tools are explicitly suitable for it.
