Model Rocket Nose Cones: Shape, Fit and Recovery Role

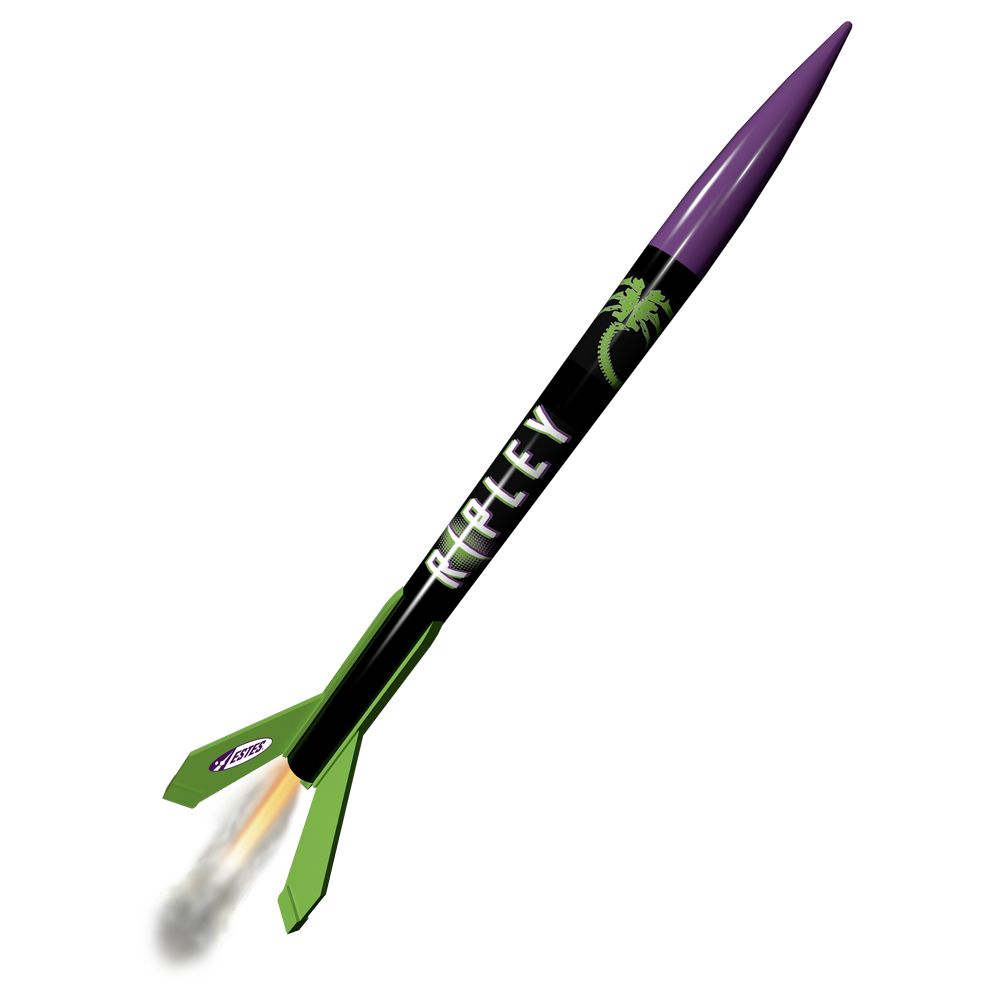

The nose cone gives a model rocket its forward shape, but its job does not end with aerodynamics. On many hobby rockets it also closes the recovery compartment and separates during the ejection event so the parachute or streamer can deploy.

The shoulder controls body-tube fit

The narrower section that slides into the body tube is the nose-cone shoulder. It should fit the intended tube without excessive force and without falling out during normal handling. Paint buildup, a crushed tube or a mismatched cone can change that fit.

Too tight and recovery can be affected

If the nose cone binds badly in the tube, the ejection event may not release it as intended. Do not solve a tight fit by forcing the cone deeper. Check for damage, paint, debris or a wrong-size component and follow the kit instructions for adjustment.

Too loose is also a problem

A cone that slips out with almost no resistance can separate during handling or before the intended point in flight. The correct fit is model-specific; use the manufacturer's assembly guidance rather than a universal “drop test” copied from another rocket.

Inspect the recovery attachment point

Many nose cones include an eyelet or molded attachment feature for the shock cord or recovery system. Check it for cracks, deformation or sharp edges. A perfect body-tube fit does not help if the attachment point fails during recovery.

Shape is not a compatibility standard

Two cones can both look “ogive” or “conical” and still differ in shoulder diameter, length, material and weight. Choose replacements by exact kit or verified dimensions, not by silhouette alone.

Finish carefully

Primer and paint can improve appearance, but keep the sliding shoulder and required fit surfaces within the tolerances described by the instructions. Heavy paint where the cone enters the tube can turn a previously correct fit into a binding one.

Shop the complete design

Current model rocket kits show nose cones as part of a complete airframe and recovery system. Use the exact listing and instructions to confirm skill level, components and replacement compatibility. The broader Estes Rockets collection provides additional examples.

Bottom line

A nose cone is structural, aerodynamic and part of recovery. Inspect its shape, shoulder fit and attachment point together, and match replacements to the exact rocket rather than to appearance alone.
