How to Apply Bandai Gundam Decal No. 141 to 1/144 SEED FREEDOM Kits

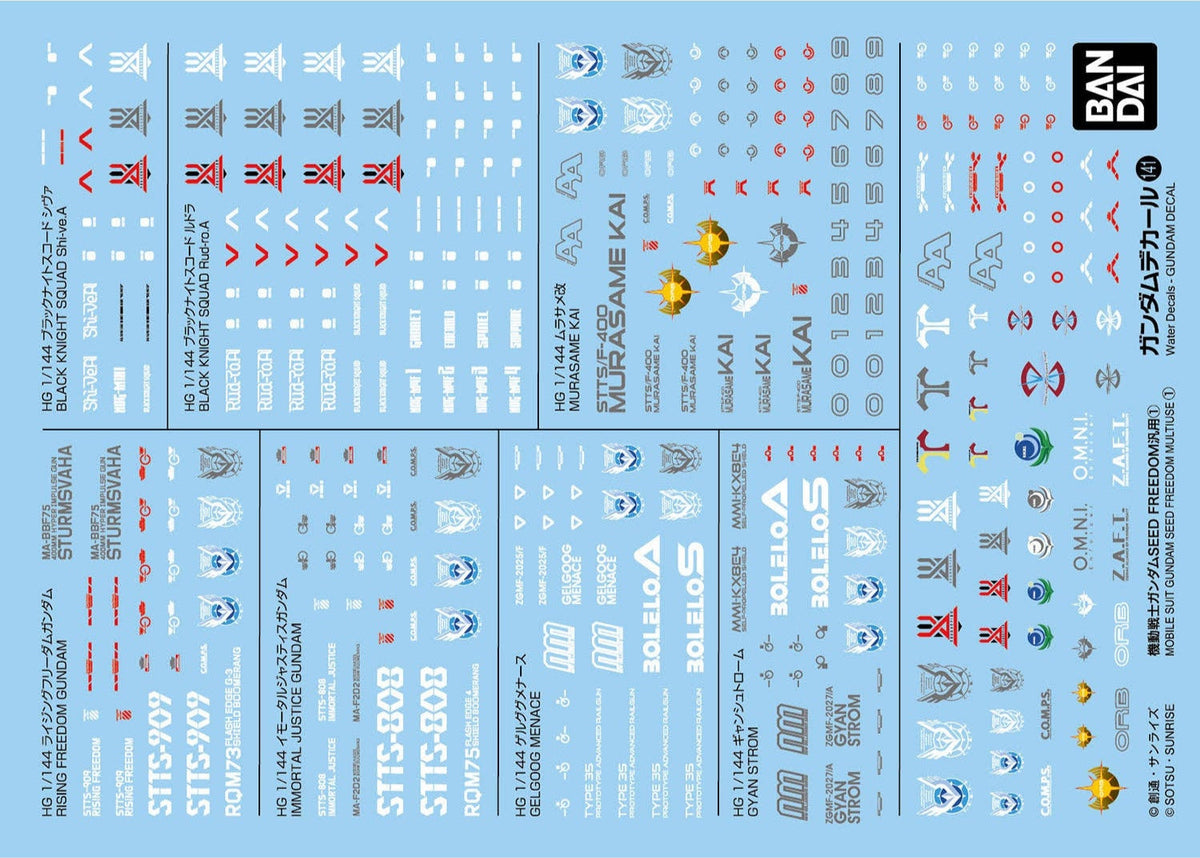

Bandai Gundam Decal No. 141 is a one-sheet set of water-transfer, or waterslide, markings for 1/144-scale models from Mobile Suit Gundam SEED FREEDOM. Bandai identifies it as General Purpose 1, item 2794138. The Muncle Mikes SKU is BAS2794138, and the JAN code is 4573102688767. This product is a printed decal accessory, not a model kit and not a sheet of peel-and-stick labels.

Bandai shows the set with the 1/144 Rising Freedom Gundam, Immortal Justice Gundam, and Black Knight Squad Shi-ve.A. Those examples establish the intended series and scale. Because this is a general-purpose sheet, the builder still chooses which markings suit a particular panel, color scheme, or display concept. Check the size and orientation of each decal against the actual part before soaking it.

Is No. 141 the right decal sheet for your build?

Start with three identity checks: the sheet number, the series, and the scale. The package should say Gundam Decal No. 141, Mobile Suit Gundam SEED FREEDOM, and 1/144. Item 2794138 and JAN 4573102688767 provide two additional ways to distinguish it from similarly named Gundam decal releases.

No. 141 is labeled General Purpose 1 rather than as a complete replacement marking map for one specific kit. That gives the builder flexibility, but it also means every symbol is not automatically appropriate for every model. Consider the visual role of the marking, its physical size, the color beneath it, and whether the target area is flat, curved, stepped, or close to a moving joint.

Keep the package and unused sheet together throughout the build. Small warning labels and unit-style graphics can look similar once separated from their printed layout. A quick phone photograph of the untouched sheet can also preserve the original arrangement before individual markings are cut out.

Prepare the model before applying decals

Complete major assembly, seam work, sanding, and most painting before starting the decal stage. The surface should be clean and free of sanding dust, loose pigment, fingerprints, and uncured paint. Use a cleaning method that is compatible with the plastic and paint system already on the model.

A smooth surface generally gives transparent carrier film better contact and reduces the chance of pale, silvery areas beneath the decal. Builders commonly apply waterslide markings over gloss or smooth satin finishes. A heavily textured matte surface can trap small air pockets. When using an unfamiliar primer, paint, clear coat, setter, or softener, test the full combination on a spare part or hidden area first.

Decals may also be applied to bare plastic, but bare plastic is not automatically risk-free. Mold-release residue, skin oils, polishing compounds, and later clear coats can still affect the result. Clean the surface, avoid handling the target area with bare fingers, and confirm that the final coating is suitable for the material.

Useful tools for a controlled decal session

You do not need an elaborate bench setup, but a few clean tools make the process easier:

• A shallow dish of clean water
• Fine scissors or a sharp hobby knife and cutting mat
• Fine-tip tweezers for the backing paper
• A soft brush for sliding and positioning the film
• Cotton swabs or lint-free applicators for removing water
• Optional decal-setting and decal-softening solutions
• A stable parts holder so the model does not move while a marking is aligned

Use cutting tools on a proper mat and keep fingers out of the blade path. Keep decal solutions and clear finishes labeled and separated from the water dish. Follow the manufacturer’s ventilation and handling instructions for paints, solvents, and aerosol finishes.

Plan the marking layout before soaking anything

1. Choose the visual style. Decide whether the model should have a restrained factory appearance, a dense maintenance-marking look, or something between those extremes.
2. Place the largest identifiers first. Major emblems, numbers, and high-contrast graphics establish the hierarchy. Small warning labels should support that plan rather than compete with it.
3. Check left-to-right balance. Mirrored armor panels can look uneven when one marking sits closer to a seam or edge than its counterpart.
4. Inspect the assembled silhouette. A decal that looks centered on a loose part may become hidden by a weapon, shield, backpack, or overlapping armor after assembly.
5. Work in sections. Finish one arm, leg, weapon, or armor group at a time so wet markings are not disturbed while the model is handled.

Dry-fit the surrounding assemblies before committing to a marking that crosses a seam, sits beside a hinge, or wraps around a compound curve. Avoid placing delicate film where two parts will scrape against each other during posing.

How to apply Bandai Gundam Decal No. 141

1. Cut out one marking. Separate it without cutting into neighboring designs. Leave enough backing paper to hold with tweezers.
2. Wet the cut piece. Soak or moisten it according to the package guidance. Set it on a clean surface and wait until the printed film begins to slide without force.
3. Dampen the target panel. A small film of clean water gives the decal room to move during alignment.
4. Bring the backing close to the model. Slide the marking from the paper onto the part with a soft brush. This gives more control than lifting the unsupported film through the air.
5. Align the design gently. Use panel lines, armor edges, and matching parts as reference points. Add a little water if the marking stops moving too soon.
6. Remove excess water. Roll or press a cotton swab lightly from the center outward. Do not drag aggressively across the printed design.
7. Check the final orientation. Confirm that text, arrows, emblems, and mirrored markings face the intended direction before the adhesive settles.
8. Let the area dry undisturbed. A decal that appears secure can still shift, fold, or tear when the part is handled prematurely.

Work patiently with the smallest markings. At 1/144 scale, a fraction of a millimeter can make a warning label look noticeably crooked beside a panel line. Good lighting and magnification can be more valuable than trying to work faster.

Setting solution versus softening solution

A setting solution is generally used to improve contact and adhesion. A softening solution is designed to make the film more flexible so it can conform to recessed lines, raised details, and curved surfaces. Some products combine aspects of both, while others are deliberately stronger. Read the label rather than assuming two bottles work the same way.

Use the smallest practical amount and test unfamiliar products before applying them to a finished model. A strong softener can make a decal wrinkle temporarily and become extremely fragile. Once that reaction begins, do not brush, press, or reposition the film until it has dried. Repeated heavy applications can damage the print, the carrier film, or the finish beneath it.

Deep grooves and abrupt corners require patience. Let one controlled treatment work before adding more. Cutting or puncturing the film is a last-resort technique because it can create visible breaks. It is often better to select a nearby flatter placement than to force one decal across a surface it cannot follow cleanly.

Drying and sealing the finished markings

Allow the decals to dry fully before attaching parts that may rub against them or applying a protective finish. Drying time varies with humidity, surface texture, the amount of water used, and any setting products. A decal can look dry at the edge while moisture remains trapped beneath the center.

Choose a final clear finish that matches the model: gloss, satin, semi-gloss, or matte. Test it over the same paint system and, when possible, over a spare decal. Apply compatible clear coats in controlled passes rather than flooding the surface with one heavy wet layer. The purpose is to protect the markings and visually integrate the carrier-film edges without attacking the paint or print.

When weathering is part of the build, decide whether the effect should sit beneath, around, or over the markings. Realistic-looking wear usually follows a consistent story. A freshly applied warning label on heavily weathered armor can look intentional, but random differences in sheen or dirt may look accidental.

Fixing common waterslide-decal problems

Silvering beneath the carrier film

Silvering is the pale or reflective appearance caused by air or poor surface contact under transparent film. A smoother base finish, careful water removal, and a compatible setting solution can reduce the risk. Do not scrape a finished marking aggressively. If the decal is already dry, use only a repair method that is compatible with the paint and clear-coat system.

The marking dries crooked

If the film is still wet and movable, add a small amount of water and adjust it with a soft brush. Once it has bonded and dried, forced movement can tear the print or lift the paint. A badly misaligned marking may need to be removed and replaced rather than dragged across the panel.

The decal folds over itself

Keep it wet and use a soft brush to open the fold from an edge. Pulling with tweezers can stretch or split softened film. Work slowly and stop if the printed layer begins to separate.

The decal tears during transfer

Position the pieces while they remain wet and bring the printed edges together. A tiny gap may be less noticeable after sealing, but paint touch-up should be attempted only with a tested color and a very fine brush.

The film will not follow a curve

Confirm that the surface is wet enough for positioning, then use a compatible softening solution sparingly. Let it work before pressing again. If the curve is too severe, choose a smaller marking or a flatter nearby panel instead of forcing the film.

The clear edge remains visible

Make sure the decal is fully dry, then use a compatible clear finish to unify the sheen. Carrier edges are often most obvious when glossy film sits on a rough matte surface.

Store the unused portion of the sheet

Keep the remaining decals flat, dry, and protected from direct sunlight, heat, and humidity. Return the sheet to its package or a clean protective sleeve with item number 2794138 visible. Do not store it beside wet tools, open solvents, or in a model box exposed to major temperature swings.

Leave enough package information with the sheet to identify it later. Gundam decal releases can have similar names and scales, and loose sheets are easy to confuse once the header card is discarded. Recording No. 141, BAS2794138, and JAN 4573102688767 together preserves the identity trail.

Frequently asked questions

Is Gundam Decal No. 141 a waterslide sheet?

Yes. It is a water-transfer, commonly called waterslide, decal set for 1/144-scale SEED FREEDOM models.

How many decal sheets are included?

The product contains one printed decal sheet.

Are Rising Freedom Gundam, Immortal Justice Gundam, or Shi-ve.A included?

No. Bandai shows those models as examples for the markings. The model kits are separate products.

Can No. 141 be used on a different 1/144 kit?

It may work when the marking size, design, color, and target surface suit the project. However, its official identity and named examples are tied to Mobile Suit Gundam SEED FREEDOM, so use on another kit is a builder-directed choice rather than proof of an official placement map.

Do I need to print the decals?

No. The artwork is already printed on the supplied waterslide sheet. Cut out, wet, transfer, position, dry, and protect the selected markings.

Should the decals go on before or after the final clear coat?

They normally go on before the final protective finish. Some builders first apply a smooth compatible clear layer to improve the decal surface, then seal the fully dried markings with the chosen final sheen.

What is the difference between No. 141 and No. 142?

They are separate Gundam decal products. Keep the sheet number, item number, and package together so General Purpose 1, No. 141, is not confused with General Purpose 2, No. 142.

Final assessment

Bandai Gundam Decal No. 141 gives 1/144 SEED FREEDOM builders a dedicated sheet of small-scale technical markings. The strongest results come from exact product identification, a smooth prepared surface, a deliberate placement plan, controlled water removal, full drying time, and a compatible protective finish. Use Bandai’s named models as series-and-scale examples, then judge each marking against the actual panel before applying it.
