Mapping the Enterprise-D Hull: Applying MKA066 Aztec Decals in 1/1400

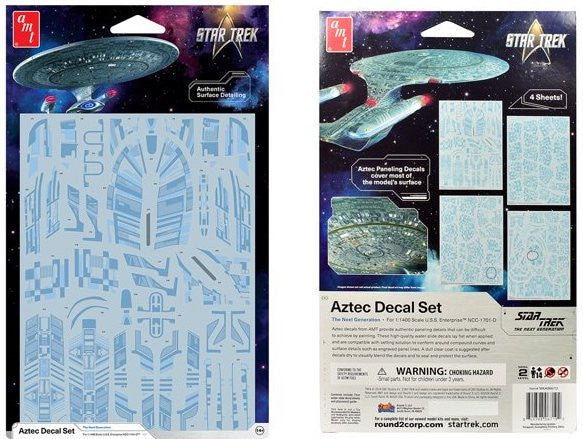

The MKA066 1/1400 USS Enterprise NCC-1701-D Aztec Decal Set is designed to add a hull-panel pattern and surface detailing to a compatible Enterprise-D model. The exact identity matters: the vendor is MKA, the scale is 1/1400, and the SKU is MKA066. A similar-looking decal sheet in another scale or for another kit should not be treated as interchangeable.

The live listing confirms the subject, scale, product type, and intended decorative purpose. It does not identify every compatible base kit, the number of decal sections, or a complete application system. Confirm compatibility from the package and instructions before wetting a decal or applying a setting solution.

Compatibility is the first installation step

An Aztec pattern must follow a model’s exact surface layout. Two Enterprise-D kits can share the same nominal scale while differing in panel boundaries, openings, curves, or molded details. Compare the MKA066 diagrams with the model on your bench and verify that the main sections align before beginning.

If a sheet edge, window opening, or panel break does not match the base kit, stop and resolve the difference before application. Decals are much easier to evaluate while dry than after the carrier film has softened.

Prepare the model for a large decal project

Aztec markings cover broad areas, so surface preparation affects nearly every later step. Complete seam work, sanding, primer, and the main paint finish first. The surface should be clean, smooth, and fully cured. Dust or rough paint can create silvering and poor adhesion.

Use the clear finish recommended for your paint and decal system. A smooth surface usually gives carrier film the best chance to disappear, but test unfamiliar combinations before coating the entire model. Keep the instructions and basic decal tools within reach.

Map the application sequence before using water

Do not begin with the first decal you notice. Study the numbering and divide the ship into zones. A planned sequence reduces handling and helps neighboring patterns meet correctly.

1. Inventory the sheets. Confirm that the printed sections and instructions appear complete.
2. Identify anchor decals. Find pieces that establish a centerline, major panel boundary, or recognizable alignment point.
3. Work symmetrically when practical. Completing matched left and right areas together makes alignment differences easier to see.
4. Leave handling zones. Avoid covering every place needed to hold the model during the same session.
5. Schedule drying breaks. Let one area settle before rotating the model or applying pressure nearby.

Apply one section at a time

Follow the MKA instructions for soaking and release time rather than assuming every decal film behaves the same way. Work with one section at a time. Slide it onto the target area and keep it movable until aligned.

Use molded features and printed boundaries as reference points. Check the decal from more than one angle before removing excess water. On a large curved surface, align the most important center or edge first, then work outward. Trying to force the entire piece flat at once can trap folds or shift the pattern.

Blot gently from the center toward the edge. Avoid dragging a dry swab across softened film. If a bubble remains, give the decal time to settle before deciding whether intervention is needed. Patience is safer than repeatedly lifting a section that is beginning to adhere.

Use setting solutions cautiously

The product record does not specify which chemical system is required. Test any setting solution with a spare marking or small area when possible. Use the mildest effective approach first, especially over complex curves or recessed detail.

A softening decal may wrinkle temporarily. Do not touch it simply because the surface looks uneven during the reaction. Allow the process to finish.

Keep the pattern consistent across joins

The Enterprise-D’s large surfaces make pattern continuity important. Before setting each neighboring piece, compare line direction, spacing, and overlap with the completed section.

If trimming is required, use a sharp blade and a stable cutting surface before the decal is soaked. Avoid cutting directly against finished paint unless the instructions specifically require it and the surface is protected. Save labeled offcuts until the project is complete; a small matching fragment can help repair a gap.

Seal and finish only after a full inspection

Let the decals dry completely, then inspect under angled light. Look for trapped air, lifted edges, visible carrier film, residue, and mismatched joins. Correct local issues before applying a final clear coat.

Choose the final sheen from the model’s paint plan and test it over the decal system. Apply light coats so liquid does not pool along film edges. The goal is to integrate the Aztec pattern with the painted hull, not bury the surface under a heavy finish.

Who should consider MKA066?

This set is for a builder with a compatible 1/1400 Enterprise-D model who wants a detailed hull-panel treatment and is comfortable working methodically across large decal areas. Before ordering, confirm the base kit, scale, product image, SKU MKA066, and any builder-supplied finishing materials.

Final assessment

The MKA066 Enterprise-D Aztec Decal Set is best handled as a mapped surface-finishing project. Verify compatibility, prepare a smooth cured finish, establish anchor sections, work in zones, and allow each area to settle before moving on. Careful sequencing will do more for the final pattern than speed.
