Model Rocket Guides

A8-3 vs. B6-4 vs. C6-5 Model Rocket Motors

Publicado por

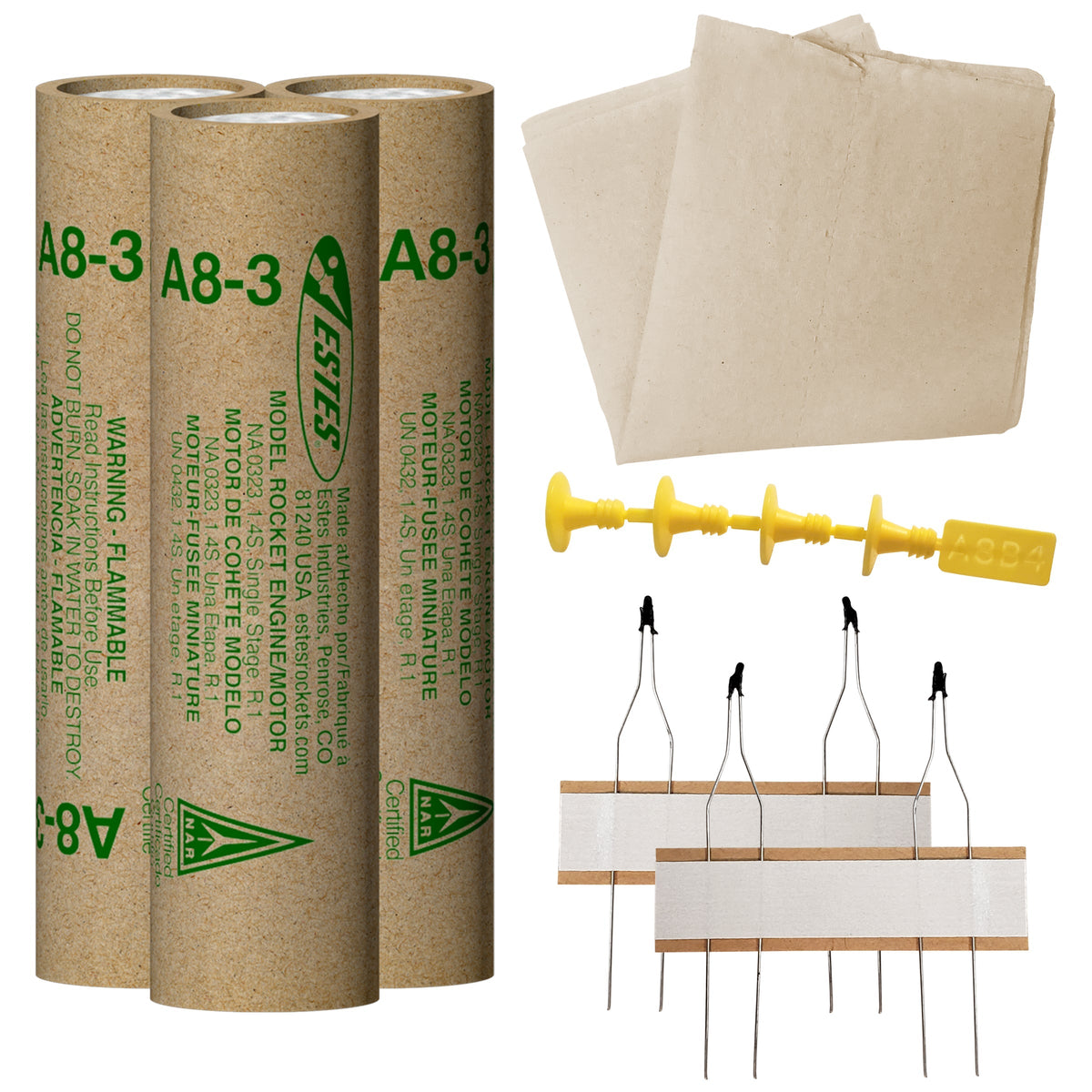

Estes A8-3 model rocket motors, starters, plugs and recovery wadding

Updated October 15, 2026.

A8-3, B6-4 and C6-5 are common 18 mm model-rocket motor designations, but they are not a three-step upgrade ladder for every rocket. Use one only when the complete code appears in the current instructions for the exact model and configuration.

What changes in the code?

  • Letter: the total-impulse class. B provides a larger impulse range than A, and C larger than B.
  • First number: average thrust in newtons. A motor with a higher number can deliver thrust differently even within a related size.
  • Final number: the delay in seconds between powered flight and the recovery-system ejection event.

A8-3

A8-3 is commonly listed as a first-flight choice for several verified beginner launch sets in the current Muncle Mikes catalog. That does not make it universal. Check the rocket instructions, finished weight and field.

B6-4

B6-4 provides a different impulse class, thrust profile and four-second delay. Use it only when the exact rocket list includes B6-4. A rocket that approves another B motor or another delay does not automatically approve this code.

C6-5

C6-5 can produce a higher-energy flight with a five-second delay. It generally demands more field and recovery planning than a lower-impulse first flight. The NAR site-dimension table increases with installed total impulse.

How to choose among them

  1. Open the exact rocket instructions.
  2. Find every approved complete motor code.
  3. Consider the finished configuration and payload.
  4. Choose a field that meets current safety guidance.
  5. Select the approved code appropriate to the planned flight; do not substitute by diameter or letter.

Compare verified 18 mm motors and use the complete motor-selection guide.

Important booster warning

A code ending in -0 is a booster designation, not a normal delayed recovery motor. Do not use it alone unless the staged-rocket instructions specifically call for it.

Primary references

Review Estes’ current engine-code explanation and the NAR Model Rocket Safety Code before launch.
