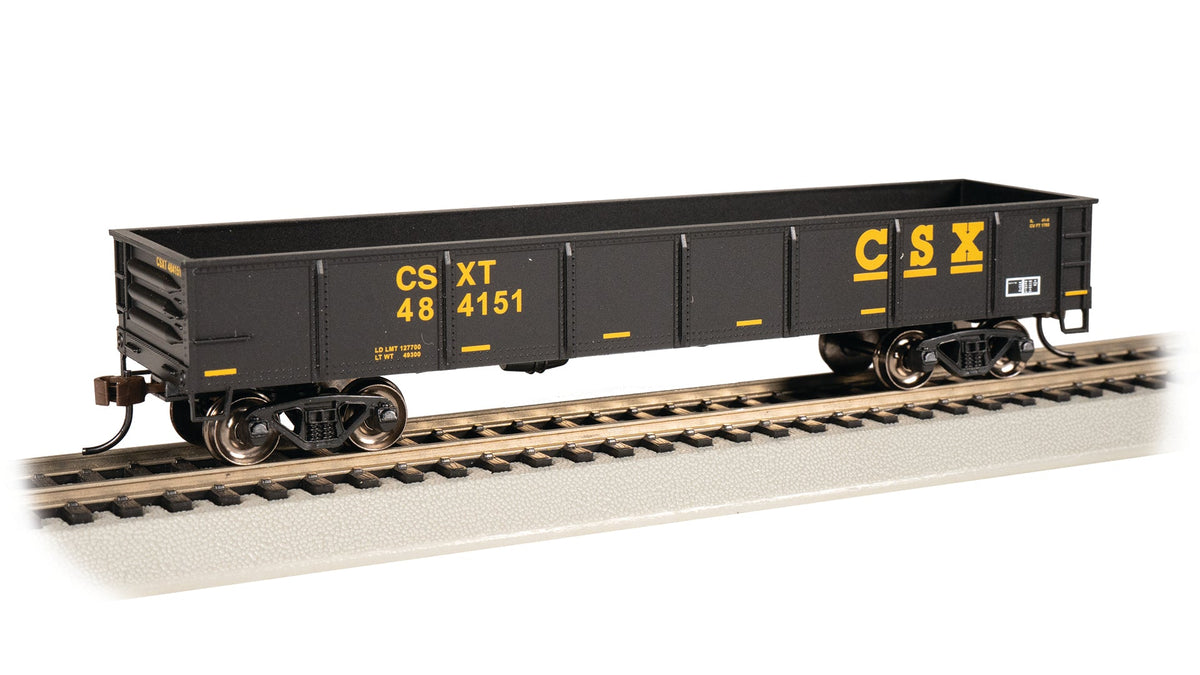

Bachmann HO Scale 40-Foot Gondola – CSX #484151 is Bachmann model 17224, store SKU BAC17224, and UPC 022899172248. This guide explains how to verify the CSX-marked release, use the manufacturer’s published model dimensions, and check the car’s couplers and wheels on an HO layout. The railroad number #484151 is part of the model’s markings; 17224 is Bachmann’s catalog item number.

Verified details for item 17224

Bachmann lists this gondola as HO scale, 1:87, with model measurements of 6 inches long × 1.5 inches wide × 1.5 inches high. The item page names a detailed painted body with precision graphics, a detailed underframe, a separately applied brake wheel, magnetically operated E-Z Mate Mark II couplers, detailed trucks with see-through sideframes, and blackened metal wheels with RP25 contours. Bachmann’s product page also states that it is an authorized CSX licensee for the trademarks used on this model.

Use the identifiers together when comparing listings: CSX #484151, Bachmann 17224, SKU BAC17224, UPC 022899172248. The road number identifies the decorated car; the item number, SKU, and UPC identify this specific catalog release. Keeping both types of number in a roster helps avoid mixing it with a similar CSX gondola or another car in the same general series.

Plan for the published size, then measure the assembled car

The 6 × 1.5 × 1.5-inch model measurement is useful for estimating shelf, storage, and siding space. If a clearance is close, measure the physical model with its couplers in place. The listed length may not include the full coupler-to-coupler span. Account for track stops, platforms, nearby cars, structures, and any removable load that raises the overall height.

HO scale is 1:87. Confirm that your track and accessories are intended for HO, then try the car on the route where it will run. Start on level, straight track. Roll it slowly around the sharpest curve and through the tightest turnout in the plan. Check that trucks and couplers swing freely and that wheels do not lift or bind. A nominal scale match does not replace a direct clearance check at the actual layout.

Gondola loads and layout scenes

A gondola is an open freight car with sides and ends, suitable for cargo that can be loaded from above or does not need a roof. Bachmann’s product description gives examples such as steel plates and coils, ballast, scrap metal, and oversized items such as track segments. Those are examples of gondola service, not a statement that a load is supplied with item 17224. Confirm included contents on the live listing and package.

On a layout, the CSX #484151 car may be shown empty, fitted with an optional removable load, or included in a switching sequence. Make any load stable and keep it clear of wheelsets, couplers, and trackside magnets. Recheck bridges, tunnels, and storage lids after loading; the listed 1.5-inch height describes the model itself.

The CSX road name and number identify the decoration. If you are assembling a period-specific train, check an appropriate railroad reference for the historical context of the road number and service rather than assuming the product name settles the prototype date.

Test magnetic uncoupling and wheel movement

Bachmann lists magnetically operated E-Z Mate Mark II couplers. If your layout uses a magnetic uncoupling ramp or trackside magnet, test the model slowly over that equipment in both directions. Check trip-pin clearance, coupler height, and coupler swing on this specific car before operating it in a long consist. The named coupler family does not prove that a particular magnet is positioned correctly for your layout.

The manufacturer lists blackened metal wheels with RP25 contours and detailed trucks with see-through sideframes. Before regular use, check that the wheels turn freely and sit properly in the trucks. Observe the car on curves and turnouts; if it wobbles or binds, address that before adding it to a longer train. Lift the car by its body or underframe to protect the separately applied brake wheel and other small details.

Keep an accurate roster entry

A practical roster line is: “Bachmann 17224 / BAC17224; CSX #484151; HO 1:87; 6 × 1.5 × 1.5 in.; E-Z Mate Mark II couplers; blackened metal RP25 wheels.” Add the date acquired, condition observed, and results from your track and uncoupling tests. Record personal adjustments separately from Bachmann’s published features.

Compare other HO gondola releases

Railroad markings and item numbers help distinguish related cars. See the Boston & Maine #9738 guide for model 17223 and the Seaboard #90255 guide for model 17222. For the broader distinction among freight-car types, read HO scale freight cars explained.

Before you buy or run it

• Match CSX #484151 with Bachmann item 17224, SKU BAC17224, or UPC 022899172248.
• Confirm HO scale (1:87) fits the layout and collection.
• Use the 6 × 1.5 × 1.5-inch published dimensions, then check tight clearances on the assembled model.
• Test magnetic uncoupling, coupler alignment, truck movement, and wheel operation on your own track.
• Check current price, availability, and exact package contents on the live listing.

In short: Bachmann model 17224 is the HO CSX gondola marked #484151. Its published dimensions and hardware details give you concrete planning points; a physical track test confirms how it fits and operates on your layout.
