Bachmann 18018 Norfolk Southern #650012: HO Plug-Door Box Car Guide

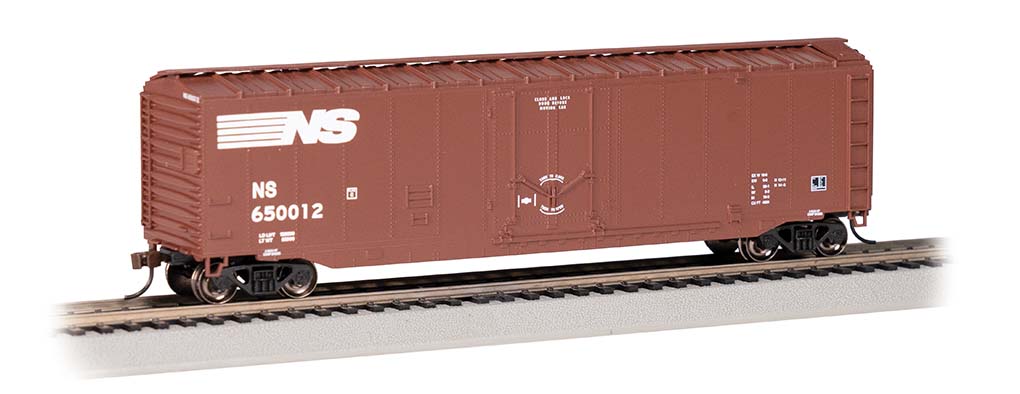

Bachmann 18018 Norfolk Southern #650012 is an HO-scale 50-foot plug-door box car for a freight roster or an industrial layout. Bachmann lists item 18018, UPC 022899180182, and HO 1:87 scale. The model measures 7.7 inches long, 1.4 inches wide, and 2 inches high. Its published features include a separately applied roofwalk and brake wheel, added weight, magnetically operated E-Z Mate Mark II couplers, detailed trucks, and blackened metal wheels with RP25 contours. This guide explains what the plug-door design does and how to check this exact model for layout fit.

Confirm the #650012 release

Match three identifiers when comparing listings: Norfolk Southern #650012, Bachmann item 18018, and UPC 022899180182. The manufacturer's official product page identifies this specific plug-door box car and lists its dimensions and features. Using the item number as well as the railroad and car number helps separate it from similarly named Bachmann plug-door cars decorated for other railroads.

The 50-foot name describes the full-size car class, not the length of the model. At 7.7 inches long, the miniature needs sufficient siding space for the body and couplers. Bachmann lists the package at 10 by 2 by 3.4 inches, which matters if original-box storage is part of your plan. Measure track and shelf space separately from package space.

What makes a plug-door car different?

Bachmann explains that a plug-door system moves inward at the end of its closing motion so the door sits flush with the inside of the box car and seals more tightly than a traditional sliding door. That makes the plug door a useful visual and operational distinction on a freight car: the side door is a defining part of the prototype style, and the model can represent a box-car movement where the load benefits from a better-sealed enclosure. The manufacturer also notes that plug-door cars were used by many railroads and commercial companies.

This model’s name and number identify the decorated Bachmann release, but do not by themselves document what #650012 carried, where it traveled, or its exact prototype history. If you are matching a particular Norfolk Southern era, consult dated railroad photographs and equipment records. A general freight scene can still use the car effectively without assigning a specific commodity or operating year that the evidence does not support.

Plan an HO scene around #650012

The car’s 7.7-inch body makes it a substantial object on a compact siding. Check the usable siding length from the turnout clearance point to the bumper, then allow room for the couplers and for the locomotive involved in the switching move. Possible destinations include a warehouse, a loading platform, a freight yard, or a spur serving a business that benefits from enclosed freight protection. The car can be a single switching assignment or part of a mixed freight train.

Use its railroad identity to decide where it belongs in an operating plan. Add #650012 to a roster, place it at a named industry, and give it a route back through the yard. If your layout uses detailed waybills, keep commodity, origin, and destination as operating choices unless a reliable historical record supports a real assignment for this car number.

Track and coupler checks

Bachmann lists the model as HO scale 1:87, with magnetically operated E-Z Mate Mark II couplers and blackened metal wheels with RP25 contours. These specifications help with planning, but they do not guarantee performance on every curve, turnout, or mixed-brand layout. Test the car on the sharpest curve and most restrictive turnout on your route. Check wheel movement, truck swing, coupler height, and clearance beside platforms and structures before building a long consist around it.

If your layout uses magnetic uncoupling, verify the magnet position and operation with this car. For mixed manufacturers, check the coupler height and engagement with a gauge or short test consist. Begin at low speed; if the car uncouples, binds, or derails, isolate curve radius, track joints, truck freedom, wheel alignment, and coupler height before changing parts.

Details to inspect during unpacking

• Roofwalk and brake wheel: Bachmann lists these as separately applied details. Hold the car by the body when lifting.
• Detailed underframe: Inspect for loose parts without pressing on brake components.
• Trucks: Confirm each truck pivots freely and has clearance from the body.
• Metal wheels: Check that they turn freely and roll cleanly on your rails.
• Added weight: Test tracking on your grades and turnouts rather than assuming a result.
• Paint and graphics: Compare Norfolk Southern and #650012 with the product images.

Bachmann recommends this model for ages 14 and up. Separately applied details can be damaged by rough handling; use care when removing the car from packaging, coupling it, or cleaning it.

Questions about the Bachmann 18018

Is this a Norfolk Southern model?

Yes. Bachmann’s product title identifies the release as Norfolk Southern #650012, item 18018.

How large is the model?

Bachmann lists the model at 7.7 inches long, 1.4 inches wide, and 2 inches high. The package is larger, at 10 by 2 by 3.4 inches.

Does a plug door guarantee weatherproof service?

The manufacturer's general description explains that plug doors close flush and seal more tightly than traditional sliding doors. It does not establish the condition or history of any individual prototype car.

Will the couplers work with my track and rolling stock?

Check the magnetic uncoupler, coupler height, curve radius, and compatibility with the specific cars on your layout.

Quick checklist

• Match Norfolk Southern #650012, Bachmann item 18018, and UPC 022899180182.
• Confirm HO 1:87 matches your layout.
• Allow for 7.7 inches of body length plus coupler and switching clearance.
• Test trucks, wheels, couplers, turnouts, and curves before regular operation.
• Use dated records for specific prototype-year or service claims.

See the Bachmann 18018 Norfolk Southern #650012 product listing for current product information and availability. Browse HO scale model trains and Bachmann rolling stock for related cars. Specifications were checked against Bachmann’s official product page on October 18, 2026. Price and inventory are omitted because they may change.
