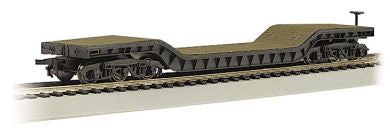

Bachmann 18349 HO Center-Depressed Flatcar with No Load Guide
Bachmann 18349 is an HO-scale 52-foot center-depressed flatcar supplied without a load. It shares the lowered-deck car type and three-axle truck arrangement with loaded and road-name-specific Bachmann releases, but the open deck makes this version the flexible option for an empty-car consist or a separately planned cargo project. This guide covers its exact identity, manufacturer-listed dimensions and fittings, and the checks to make before adding a custom load or operating it on a layout.
Exact identification
- Manufacturer: Bachmann
- Item number: 18349
- Store SKU: BAC18349
- UPC: 022899183497
- Scale: HO, 1:87
- Car type: 52-foot center-depressed flatcar
- Load status: no load included
- Model dimensions: 8 in. long × 1.5 in. wide × 1 in. high
Check item 18349 and UPC 022899183497 when matching this release. Bachmann also sells center-depressed cars with loads and specific railroad names; similar body shapes do not mean those packages contain the same parts. The product name “with No Load” is important: this is not the transformer-loaded #18348 or one of the road-name cars.
What the depressed deck is designed to do
Bachmann explains that center-depressed flatcars were developed to move larger and taller loads. The lowered middle allows a load to sit lower, while prototype versions often used trucks with more than two axles to distribute the added weight. The model is listed with detailed 90-ton Buckeye three-axle trucks. This is general design context for the car type and does not state a miniature load capacity for 18349.
The manufacturer lists a detailed painted body with precision graphics, detailed deck and underframe, separately applied brake wheel, magnetically operated E-Z Mate Mark II couplers, detailed three-axle Buckeye trucks with see-through sideframes, blackened metal wheels with RP25 contours, and fully assembled ready-to-run construction. Bachmann’s product measurements are 8 × 1.5 × 1 inches. Its retail package is 10 × 1.75 × 3.4 inches, which is useful for storage but not the car’s operating footprint.
Operating the empty flatcar
Before service, place the car on clean, level HO track and verify that the wheelsets sit correctly and roll freely. Run it slowly through your tightest curves, turnouts, and grade transitions. Its 8-inch length can produce end swing on curves, so pay attention to clearance beside platforms, signals, bridge supports, and parked cars. Bachmann does not specify a minimum curve radius on the product details reviewed; test the actual model instead of assuming it will negotiate every layout.
Check the E-Z Mate Mark II couplers with your existing fleet, including coupler height and reliable coupling through reverse curves. The 90-ton Buckeye three-axle trucks and RP25-contour wheels are manufacturer-listed features; they do not eliminate the need to check track condition or compatibility with a particular wheel and coupler setup.
Planning a separate load
The open deck of 18349 invites a custom load, but choose one that fits the model and remains secure during operation. Bachmann’s listing does not state a weight capacity or a universal load-securing method. Measure the available deck, consider the load’s overall height and width, and verify side and overhead clearance across the route. Keep the load’s weight low and centered as practical, and avoid attaching it in a way that damages the painted deck or makes later removal impossible unless you have decided that modification is appropriate.
Before running a custom-loaded car, test it slowly through curves, turnouts, and starts. Watch for the load shifting or contacting scenery. Record separately whether cargo came from Bachmann or was added later so future viewers do not mistake custom contents for the factory package.
- Match the exact item: 18349, BAC18349, UPC 022899183497.
- Confirm an empty-car package: do not assume a load is included.
- Measure any custom cargo: check deck footprint, height, and side clearance.
- Test truck and coupler behavior: roll through your tightest trackwork at low speed.
- Document modifications: distinguish custom cargo or attachments from original features.
Choosing among related cars
Select 18349 when you want the no-load version for an empty consist or your own cargo project. The 18348 version includes a gray transformer load, while named versions carry specific railroad markings. Compare the product number, decoration, and contents before buying; the general center-depressed shape is not enough to identify a particular release.
See the official Bachmann 18349 page for manufacturer details and the center-depressed flatcar category for related products. Browse our Bachmann Model Trains and Model Trains collections.
Frequently asked questions
Does Bachmann 18349 come with a load?
No. Bachmann identifies it as the “with No Load” version.
What scale is it?
HO scale, 1:87.
What are the listed model dimensions?
8 inches long, 1.5 inches wide, and 1 inch high.
Does Bachmann specify a minimum curve radius or load capacity?
Those figures are not included in the product details reviewed here. Test the car on your layout and check current manufacturer instructions before adding cargo.
Bottom line: Bachmann 18349 is the HO 52-foot center-depressed flatcar for buyers who want an empty deck. Match its SKU and UPC, distinguish it from loaded variants, and check curves, couplers, clearances, and any custom cargo before regular operation.
