Bachmann 16506 HO Santa Fe El Capitan #140271 Map Boxcar Guide

Bachmann 16506 is an HO scale Santa Fe map boxcar decorated for the El Capitan, road number #140271. The model evokes Santa Fe freight cars that carried railroad maps and train-name slogans as rolling advertisements. This guide identifies the release and its scale, describes the history behind the map scheme, and explains what to check when operating or displaying the car.

Exact product details

Bachmann lists item 16506 as Santa Fe Map Boxcar – El Capitan #140271. It is HO scale, 1:87, and carries UPC 022899165066. The Muncle Mikes SKU is BAC16506. Match the El Capitan name and road number together: the 16506 release is distinct from other Santa Fe map cars, including Chief #145263 (item 16507).

Manufacturer-listed features include a detailed painted body with precision graphics, opening corrugated sliding doors, detailed underframe, separately applied roofwalk and brake wheel, added weight, magnetically operated E-Z Mate Mark II couplers, detailed trucks with see-through sideframes, and blackened metal wheels with RP25 contours. Bachmann gives the car’s dimensions as 6.5 inches long, 1.5 inches wide, and 2 inches high.

Santa Fe’s map cars

Bachmann’s manufacturer description says the Santa Fe Railway began painting freight cars as rolling advertisements in 1940. Boxcars, refrigerator cars, and auto cars displayed a system map on one side and train-name slogans on the other. Bachmann presents this 40-foot boxcar in five map paint schemes. The El Capitan name on this version identifies a particular scheme within that group.

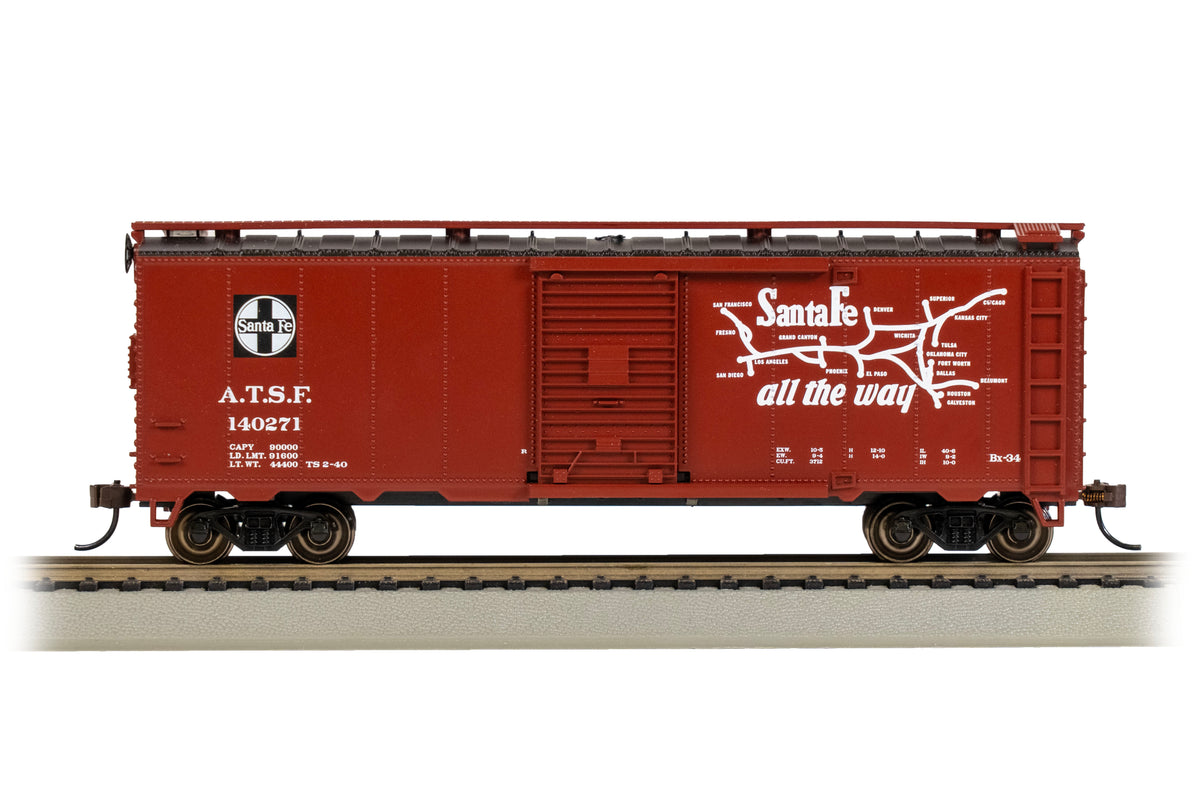

When comparing the model with a roster or reference photo, check the road number, train name, and map graphics. A similar Santa Fe color scheme does not automatically identify the El Capitan version. A second product view can help confirm graphics and door details.

Operating and display checks

• Confirm HO 1:87, Bachmann part 16506, and El Capitan #140271.
• Use the published dimensions to plan shelving, display cases, or storage.
• Inspect the separately applied roofwalk and brake wheel when handling the model.
• Check that the sliding doors move as intended and avoid forcing them.
• Verify coupler height and free rolling alongside the equipment it will run with.
• Test it through your curves, turnouts, and clearances; the product details do not state a minimum radius.

Opening doors reveal the boxcar interior, which can suit a loading scene or a display that shows the door detail. Bachmann’s current product information reviewed here does not specify included cargo or added interior accessories. Treat the car as supplied by the listing and package rather than assuming a load is included.

Frequently asked questions

What scale is item 16506?

HO scale, 1:87.

Which train name appears on this map car?

El Capitan, with Santa Fe road number #140271.

Do the doors open?

Yes. Bachmann lists opening, sliding six-foot corrugated doors.

More Bachmann HO models

Browse Bachmann model trains and HO scale trains. Compare Santa Fe Chief map car 16507 in the Chief #145263 guide.

Summary: Bachmann 16506 recreates a Santa Fe El Capitan map boxcar in HO scale with opening doors, precision graphics, and road number #140271. Match the product number, train name, and road number when choosing among map-car releases.

See Bachmann Santa Fe El Capitan boxcar 16506 at Muncle Mikes

Checked October 18, 2026 against the live Muncle Mikes record and Bachmann’s manufacturer listing for item 16506. Current price and availability are shown on the live product page.
