Model Rocket Body Tubes, Couplers and Centering Rings Explained

Body tubes, couplers and centering rings can look like simple cardboard or fiber parts, but each one controls a different piece of the rocket's structure. Understanding those roles makes kit instructions easier to follow and prevents a common mistake: buying a part because the diameter “looks close.”

The body tube is the main airframe

The body tube forms the central structure of many model rockets. It holds the motor mount, recovery system and often the fin attachment area. Its outside diameter, inside diameter, wall thickness and length all matter.

A replacement tube must match the design, not just the color or approximate width. A small diameter difference can affect nose-cone fit, couplers, centering rings and motor-mount geometry.

A tube coupler joins airframe sections

A coupler slides inside compatible tube sections to align and join them. Couplers may be used as structural joints, extension points or in designs that separate at a specific location. The correct fit is snug enough to align the tubes without crushing or distorting them.

Do not confuse an airframe coupler with a motor mount tube. They may both be cylindrical, but they serve different functions and are sized differently.

Centering rings position the motor mount

Centering rings fit between the motor-mount tube and the larger body tube. They keep the motor mount centered and transfer loads into the airframe. Ring dimensions therefore depend on both the inner motor tube and the outer body tube.

Why part numbers and tube series matter

Manufacturers use standardized tube families and part numbers across many kits, but compatibility still needs to be confirmed. A tube with a familiar name may have different length or wall requirements in a particular rocket.

Dry-fit before adhesive

Before permanent assembly, test how the tube, rings and coupler fit together according to the instructions. A dry fit can reveal a reversed ring, wrong coupler or damaged tube before adhesive makes the mistake difficult to correct.

Watch for crushed or oval tubes

Shipping damage or heavy storage can turn a round tube slightly oval. That can affect coupler and nose-cone fit. Inspect the ends before building and avoid forcing a tight component into a damaged tube.

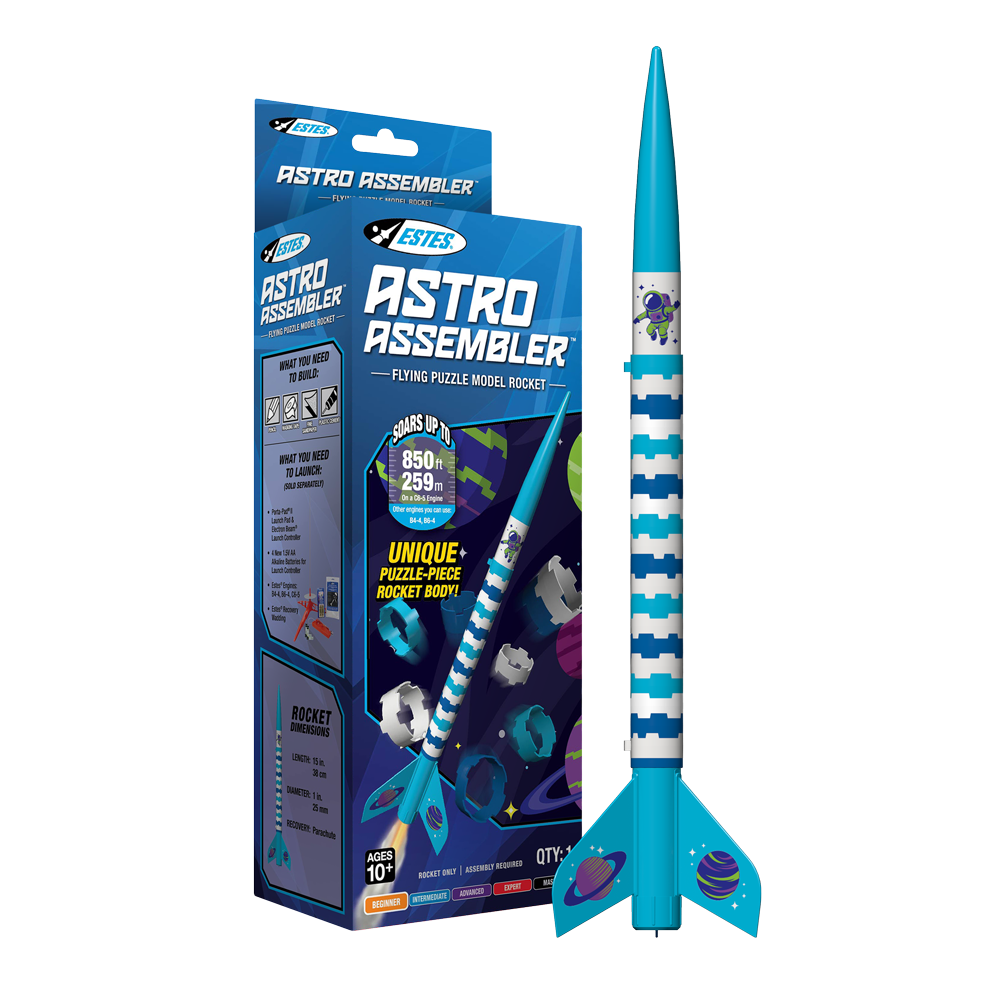

Choose kits and parts by exact design

Browse current model rocket kits and the complete model rockets, kits and motors selection. Exact product pages should be used to confirm included components, scale of the project, skill level and compatible replacement parts.

Bottom line

The body tube carries the rocket's structure, the coupler joins compatible tube sections and the centering rings position the motor mount. They work as a system, so measure and identify the exact parts rather than treating similar-looking tubes and rings as universal.
