Bachmann HO N&W #12986 Quad Hopper: Item 17607 Guide

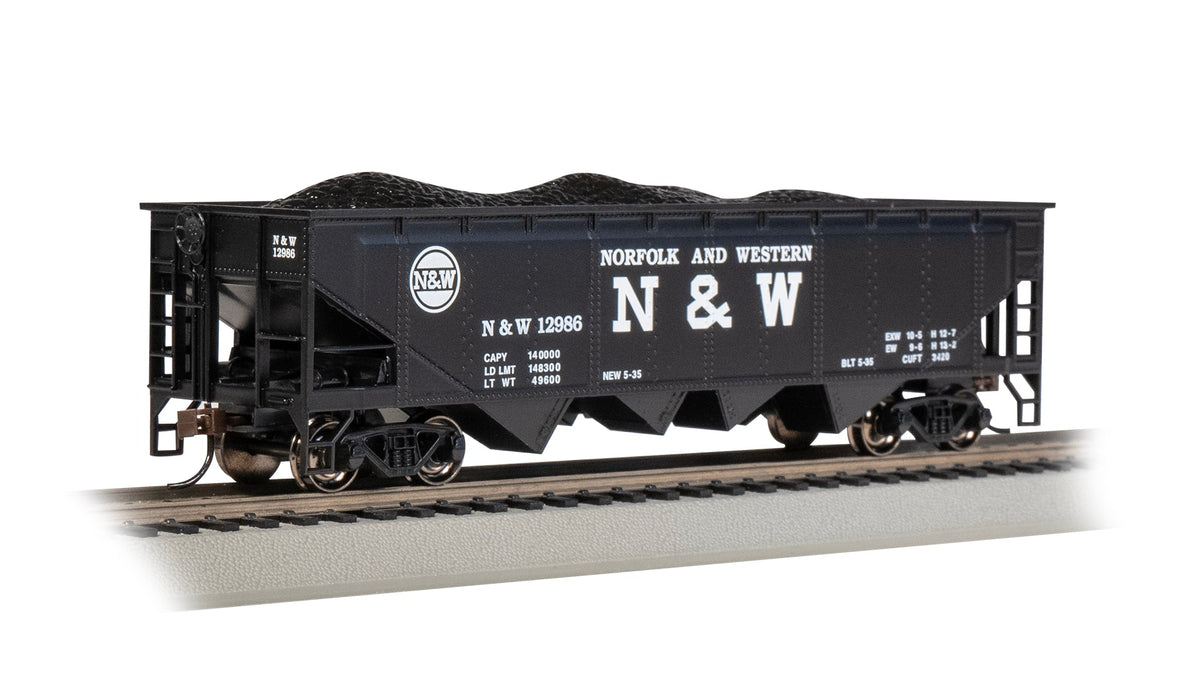

The Bachmann HO 40-foot Quad Hopper, Norfolk & Western #12986 (item 17607, store SKU BAC17607) is a black N&W-marked freight car for an HO scale model railroad. Bachmann’s product page identifies the model as item 17607 and lists a removable coal load, separately applied brake wheel, detailed hopper interior and underbody, magnetically operated E-Z Mate Mark II couplers, blackened metal wheels with RP25 contours, and a 6.25 × 1.5 × 1.5-inch model size. Here is how to use those specifics to identify the correct release and plan it for a layout.
Match Norfolk & Western #12986
Start with the exact road name and number. Bachmann’s online store identifies this quad hopper as Norfolk & Western #12986 and assigns it model number 17607. The Muncle Mikes product record uses SKU BAC17607 and confirms HO scale. Those identifiers distinguish this car from other black hoppers and from Bachmann’s similarly shaped Pennsylvania, Chesapeake & Ohio, Rock Island, and CSX releases.
- Manufacturer: Bachmann
- Scale: HO, 1:87
- Car type: 40-foot quad hopper
- Railroad and road number: Norfolk & Western #12986
- Manufacturer item: 17607
- Store SKU: BAC17607
Before purchasing or cataloging, compare the item number and road number with the product title and image. Road name alone is not enough when several Bachmann releases use a similar hopper body. The item number also helps when looking up replacement parts or comparing an older collection record with the present listing.
Understand the quad hopper setup
The quad hopper arrangement has four discharge bays beneath the car body. That configuration gives the model a different underside profile from a covered hopper or a tank car. Bachmann lists a detailed interior, chassis and underbody for item 17607, as well as an included removable coal load. The load allows the car to appear ready for delivery or to run empty as part of a return movement, depending on the operating session.
Handle the load over a clear work surface when removing or replacing it. Check that it sits properly in the hopper and does not shift during operation. When the model runs empty, keep the load in a small labeled container with the 17607 item information. A secure storage note avoids losing the accessory or mistaking it for a load from another car.
Use the dimensions for layout planning
Bachmann lists the assembled model at 6.25 inches long, 1.5 inches wide and 1.5 inches high. Use these measurements for an initial display, shelf, or siding fit. Actual clearance depends on the surrounding track, coupler spacing, structures, and whether the load is installed. Test the car in the locations where it will operate, particularly near tunnel portals, bridges, platforms, loading equipment, and tight curves.
HO scale is 1:87. Pair the model with HO track and rolling stock, then check it in a short consist before planning a longer operating move. A car can fit the nominal scale yet still need extra room beside a curve or turnout. Confirm that adjacent cars and fixed scenery stay clear through the full movement rather than relying only on a static measurement.
Check couplers and wheels on your railroad
Bachmann specifies magnetically operated E-Z Mate Mark II couplers. If your layout uses magnetic uncoupling, test the couplers over the intended magnets and verify that they release and reconnect cleanly. Check coupler height against your other cars, especially if you mix brands or have changed couplers. A gentle test through a turnout can expose unwanted uncoupling or interference before a longer train is assembled.
The product page also lists blackened metal wheels with RP25 contours. After unpacking, roll the hopper slowly along a clean section of track and observe wheel movement, truck swing, and tracking. Check the underbody and separately applied brake wheel as you handle the model; avoid catching fine details on packing material or adjacent equipment. If a wheel or coupler needs adjustment, use the product’s exact item number when seeking Bachmann instructions.
Choose a believable operating role
A loaded coal hopper can be staged for delivery to a coal-consuming industry or unloading facility. An empty hopper can represent a car returning for another assignment. These are useful layout scenarios, but Bachmann’s product page establishes the model identity and features, not the documented history of prototype car #12986. If a scene represents a precise railroad year, research the road number and lettering in dated photographs or roster records before assigning it to that era.
Keep layout storytelling separate from verified prototype history. A note beside the roster entry can record both: the model is Bachmann item 17607, and the year or route selected for the scene is supported by a specific historical source. That makes later corrections easier without weakening the product identification.
Quick checklist for item 17607
- Match Norfolk & Western #12986 and Bachmann model 17607.
- Confirm HO scale and the 40-foot quad hopper description.
- Use 6.25 × 1.5 × 1.5 inches as the listed model dimensions.
- Secure the removable coal load or store it with the item number when not in use.
- Test E-Z Mate Mark II couplers with the layout’s magnets and existing fleet.
- Check wheel movement and clearance on the intended track.
- Verify historical era claims with dated railroad sources.
Explore Bachmann HO freight cars
See the Bachmann N&W #12986 product page for current store details. Browse Bachmann model trains and HO scale model trains when planning a compatible roster.
