Bachmann 17956 Tropicana Orange: N Scale Reefer Guide

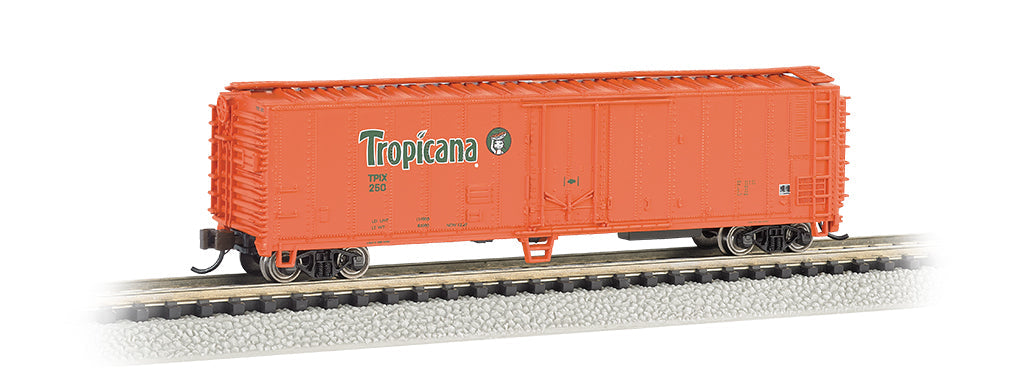

Bachmann 17956 Tropicana Orange ACF 50-foot steel reefer is an N-scale 1:160 refrigerated freight car with a vivid orange livery. Bachmann identifies the model as item 17956 and UPC 022899179568. Its published dimensions are 4.25 inches long, 0.75 inches wide, and 1.25 inches high. The car features body-mounted E-Z Mate Mark II couplers, blackened metal wheels with RP25 contours, a separately applied brake wheel and roofwalk, and added weight. This guide helps you distinguish the orange release from nearby Tropicana models and check its fit and operation.

Identify the orange Tropicana release

Use all three identifiers when comparing products: the Tropicana Orange name, Bachmann item 17956, and UPC 022899179568. Bachmann’s official product page confirms that exact version and its details. The same ACF reefer family includes other Tropicana schemes and numbered cars, so the brand alone is not enough to confirm a match. Check the orange finish and listing photo alongside the item number.

“50-foot” describes the full-size car type, not the miniature length. The N-scale model measures 4.25 inches long. Its retail package measures 6.4 by 1.3 by 2.5 inches. Plan layout clearances using the model’s dimensions, and plan cabinet or storage space using the package dimensions if you keep the box.

Give the orange reefer a purpose in the scene

The bright livery makes this car easy to spot in a short freight consist and gives an N-scale yard track a strong color accent. It can work near a produce warehouse, a cold-storage building, or a distribution platform, or as one car in a larger reefer movement. A clearly defined destination turns it into an operating choice rather than simply a colorful car: assign it to an industry, route it through a yard, or use it to anchor a switching session.

Bachmann describes its 50-foot steel reefer family as representing cars in service from the 1950s through the 1970s and provides general background on refrigerated rail freight. That is a broad model-family date range. The orange decoration and product name do not establish the prototype’s exact number, equipment history, route, or the year it operated. If you are building a specific historical scene, verify those details through dated railroad photographs and equipment records.

Check N-scale fit before running

At 1:160 scale, item 17956 is intended for N-scale track and equipment. The 4.25-inch model body is compact, but coupler length and trackside structures still affect clearance. Measure the usable siding from the clearance point at the turnout to the end stop. Consider whether the spur must hold only the car or a locomotive as well.

Bachmann lists detailed trucks with see-through sideframes and blackened metal wheels with RP25 contours. These are useful feature details, but the product page does not promise a minimum radius for every layout. Test the car through your tightest curve and turnout, and check clearances beside platforms, building corners, and neighboring cars. On a small layout, that short test can prevent a hard-to-find problem after you have built a full train.

Body-mounted coupler considerations

The car has body-mounted, magnetically operated E-Z Mate Mark II couplers. Body mounting means the couplers move with the car body, so the behavior on a very tight curve is worth checking before assembling a long consist. Test the car with the uncoupling magnets you use, verify coupler height against your other N-scale rolling stock, and confirm it remains coupled while backing through turnouts.

Start with a short test train on known-good track. Roll the car by hand to check wheel movement and truck pivot, then pull it at low speed through your sharpest curve. If it uncouples or derails, inspect coupler height, magnet placement, wheel alignment, curve radius, and track joints one at a time. Avoid changing several things at once; a single-variable check makes the cause easier to identify.

Handling and inspection checklist

• Paint scheme: Match the orange Tropicana version rather than a white-and-green or numbered blue-and-silver model.
• Brake wheel and roofwalk: Bachmann lists these as separately applied; hold the body when lifting.
• Underframe details: Check for loose parts without pressing delicate brake details.
• Trucks and wheels: Confirm free motion and clear the sideframes of packing material.
• Added weight: Evaluate how the car behaves on your actual grades and turnouts.
• Body-mounted couplers: Test height, curve behavior, and magnetic uncoupling in your layout.

The manufacturer recommends the car for ages 14 and up. Small details are vulnerable during unpacking and cleaning, so use gentle handling and store the model safely after operation.

Questions about Bachmann 17956

Is 17956 N scale?

Yes. Bachmann lists the model as N 1:160, with a body size of 4.25 by 0.75 by 1.25 inches.

Does the orange Tropicana name identify a numbered car?

The manufacturer title for item 17956 is Tropicana Orange. Do not substitute a separate numbered Tropicana model; confirm the item number and image together.

Will it work with every N-scale layout?

Scale is only one part of fit. Check your track, curve radius, turnout behavior, coupler height, and magnetic uncoupler.

Can I place it in a specific historical year?

The manufacturer gives broad context for the product family, but the decorated model does not establish a precise prototype assignment. Use primary historical references for exact claims.

Quick checklist

• Match Tropicana Orange, Bachmann 17956, and UPC 022899179568.
• Confirm N scale 1:160 fits your roster and track.
• Allow 4.25 inches for the car body plus coupler and turnout clearance.
• Test body-mounted couplers, wheelsets, curves, and uncoupling magnets.
• Protect the brake wheel and roofwalk when handling the model.

See the Bachmann 17956 Tropicana Orange product listing for current options and availability. Browse N-scale model trains and Bachmann models for related cars. Specifications were verified against Bachmann’s official product page on October 18, 2026. Price and stock are omitted because they change.
