Starting an N Scale Railroad with KATO’s Santa Fe F7 Set #106-0049

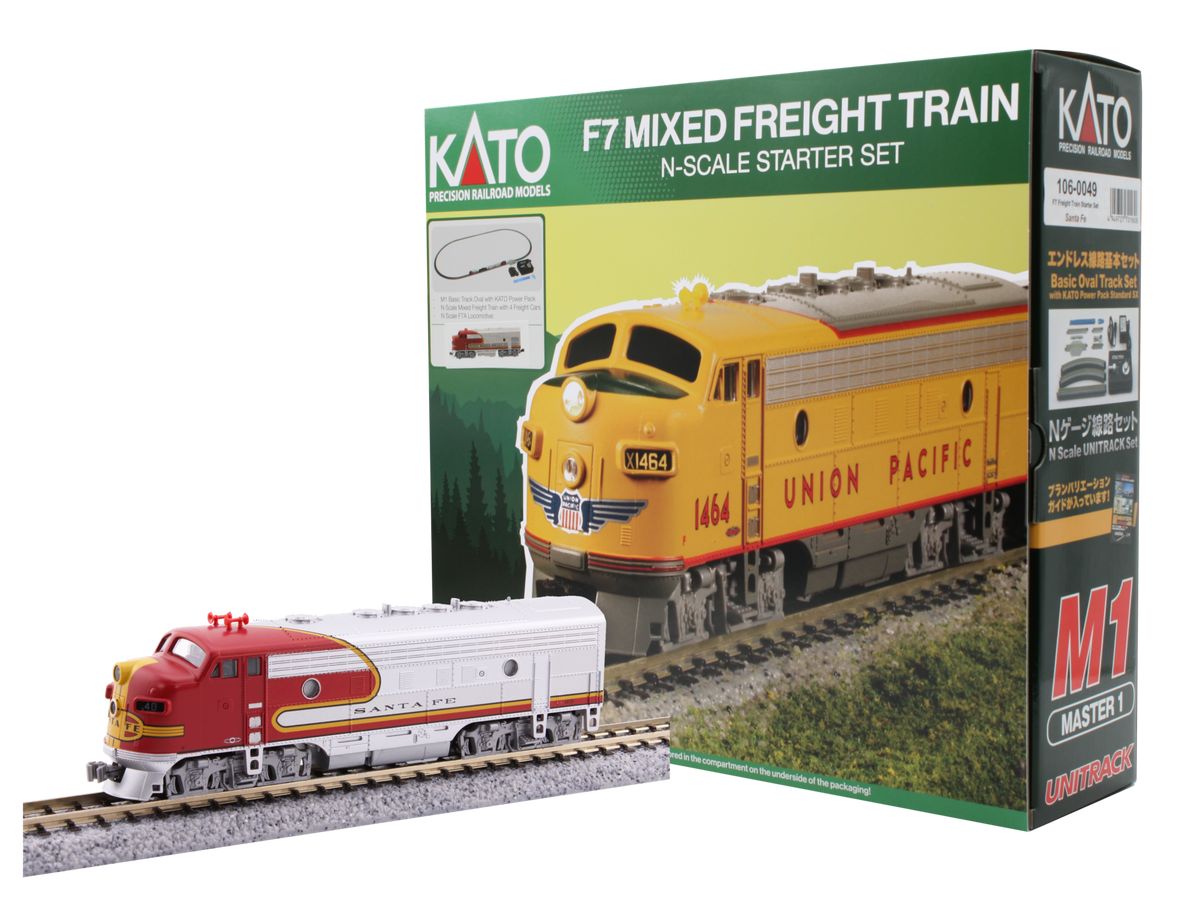

KATO’s N Scale F7 Freight Train Starter Set AT&SF #106-0049 combines a Santa Fe F7 freight train, a complete oval of KATO UNITRACK, and the Power Pack SX in one matched starting package. The exact identifiers are KATO item 106-0049 and Muncle Mikes SKU KAT1060049. Those numbers matter because KATO also offers closely related F7 train sets and starter sets with different road names, paint schemes, and item numbers.
This guide focuses on what the official KATO record confirms, how to assemble the included track and power system, what to inspect before the first run, and how to expand the set without losing track of compatibility. It does not replace the instruction booklet packaged with the set.
What is included in KATO starter set 106-0049?
KATO describes this package as an all-in-one starting point for an N scale railroad. The official contents list includes an instruction booklet and starter guide; four 248 mm straight sections; one 124 mm straight; one 124 mm rerailing track; one 62 mm straight; one 62 mm electrical feeder track; eight 315 mm-radius, 45-degree curves; road-crossing accessories; the Power Pack SX; and a railing-ramp and Unijoiner-remover bundle. Together, the track pieces form an approximately 3-by-4-foot oval.
The train portion uses an AT&SF EMD F7A locomotive. KATO’s F7 freight-set information identifies the accompanying consist as two Southern Pacific ACF 70-ton covered hoppers, one UTLX tank car, and an AT&SF cupola caboose. Because packaging and production details can change, compare the received contents with the enclosed parts list before discarding the box or protective inserts.
Choose a level location before assembling the oval
UNITRACK is designed for repeatable assembly, but the surface beneath it still controls how smoothly a train runs. Start on a clean, level table or floor with enough room for the complete oval and safe access to the controller. Remove dust, fibers, and small objects that could lift a track section or interfere with a locomotive.
Lay out the pieces without forcing the joints. Align the rails and roadbed, then press the sections together through the Unijoiners. A properly joined connection should sit straight and level without a visible rail gap. If a joint resists, separate it with the supplied remover and inspect the Unijoiner rather than twisting the track. Repeated force can create a misalignment that is difficult to diagnose after the entire oval is connected.
Place the feeder and rerailing track deliberately
Put the electrical feeder section where its cable can reach the Power Pack SX without crossing a walkway or pulling against the track. Route the lead so it has a little slack and cannot be snagged. The keyed, color-coded KATO connectors are intended to make the connection straightforward; match the plugs according to the included instructions instead of forcing an unfamiliar connector.
The rerailing track is useful near the accessible side of the layout. Its molded guidance helps wheels settle onto the rails and gives a convenient place to put equipment on the track. The road-crossing accessories can be installed after the oval runs correctly. First establish reliable track and power; scenery and roadside details are easier to add once the operating foundation has passed a test.
Inspect the F7A and freight cars before the first run
Handle the F7A by solid body areas rather than handrails, couplers, or other small details. Check that the locomotive and each car sit squarely on their wheelsets. Look for packing material around trucks and couplers, and confirm that no wheel is riding outside a rail before power is applied.
Couple the consist on a straight section. The locomotive should lead, followed by the freight cars and caboose in the order you prefer. Make sure each coupler closes and that the cars roll freely. A car that binds by hand should be inspected before it is pulled around the layout.
Make the first powered test slow and simple
Set the Power Pack SX control to stop before connecting or energizing the system. Follow KATO’s booklet for the power-supply connection and operating controls. Begin with the locomotive alone at low speed. Let it travel several laps in both directions while you watch each rail joint, curve, feeder connection, and crossing area.
After the locomotive runs consistently, add one car at a time. This sequence makes it easier to identify whether a problem follows a particular vehicle or occurs at a specific track location. If the train hesitates, stop and inspect the nearby rail joints and wheel placement before increasing speed. More throttle is not a repair for a poor connection.
Understanding the included analog control
The Power Pack SX supplies the conventional analog DC control intended for this starter configuration. KATO describes the connectors and controls as simple and expandable. The F7A train-set documentation describes the locomotive as DCC friendly, but a future digital conversion requires the correct decoder and KATO installation guidance. Do not assume that “DCC friendly” means a decoder is already installed.
Keep the original analog wiring arrangement documented even if the railroad later expands. A labeled photograph of the feeder, controller, and power connections can save time when the layout is moved or rebuilt.
How to expand beyond the starter oval
The included oval is a working foundation rather than a closed system. Additional compatible N scale UNITRACK can add longer straight runs, sidings, turnouts, passing tracks, or a more permanent scenic plan. Expand in stages. Add one new route, test every path, and only then attach scenery or secure track permanently.
Keep curve radius, turnout geometry, feeder placement, and available power in mind as the layout grows. The 315 mm curves in the starter oval establish the set’s initial geometry. New sections should be planned so the F7A and freight cars can move through them without abrupt changes or clearance conflicts. KATO’s starter guide includes additional layout ideas and is the best first reference for compatible expansion.
Routine care for dependable operation
Store the locomotive and cars in protective packaging when they are not in use. Keep rail tops and wheel treads clean using methods approved by KATO. Avoid abrasive cleaning or unapproved oils, which can create more electrical and traction problems than they solve. If performance changes, check track joints, feeder connections, wheel placement, and visible contamination before disassembling the locomotive.
UNITRACK can be assembled and separated repeatedly, but pull sections apart by the roadbed and use the proper Unijoiner-removal method. Do not bend the rails or yank on the feeder cable. Keep a small inventory of track pieces and accessories by KATO part number so future additions do not become guesswork.
Who is this AT&SF F7 starter set for?
KATO 106-0049 suits someone beginning an N scale railroad who wants the train, track, feeder, controller, and basic accessories selected as one system. It also works for an experienced modeler seeking a portable Santa Fe freight loop or a compact foundation for a larger UNITRACK plan. The exact road name, F7A locomotive, freight-car mix, and part number should be confirmed when the purchase is intended for a specific collection.
Frequently asked questions
Is KATO 106-0049 an N scale set?
Yes. KATO identifies 106-0049 as an N scale AT&SF F7 freight starter set.
Does it include track and a controller?
Yes. The official contents include a complete UNITRACK oval, feeder track, accessories, and the KATO Power Pack SX.
How much space does the starter oval need?
KATO describes the included configuration as approximately 3 by 4 feet. Leave additional clearance around the oval for safe access and handling.
Is the F7A already equipped with DCC?
The F7A is described as DCC friendly, not as factory-equipped with a decoder. The included starter control is analog DC. Confirm the correct decoder and installation instructions before converting it.
Can the layout be expanded?
Yes. Compatible N scale KATO UNITRACK can be added, but each expansion should be planned and tested for geometry, electrical continuity, and clearances.
Final assessment
KATO N Scale F7 Freight Train Starter Set AT&SF #106-0049 provides a coherent path from unopened box to a running Santa Fe freight train. Its strongest advantage is that the train, 315 mm-radius UNITRACK oval, feeder components, Power Pack SX, and starter documentation are designed to work together. Assemble the track without force, test the locomotive before adding the full consist, keep the first operating session slow, and expand only after the starter oval runs reliably.
