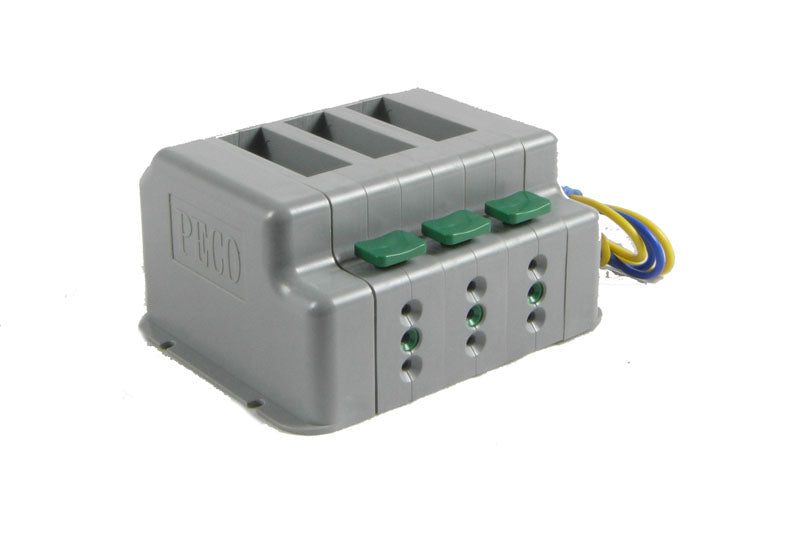

PECO PL-50 Three-Position Turnout Switch Module

Build a plug-in control panel for PECO turnout switches with the PL-50 module. The three-position housing provides the electrical connections for compatible switches and accepts the motor wires in spring-release terminals.

Features and contents

• Three switch positions in a modular housing.
• Push-button wire clamps accept prepared bare motor wires without soldering at the module.
• Fitted power leads provide the feed to the installed switches.
• Expandable using separate PL-51 add-on modules.
• Designed for PECO PL-26 passing-contact switches; compatible PL-22 or PL-23 switches can be used in separately wired groups.

Use and installation

Mount the module and wire it according to the instructions. Do not mix switch types or different power sources within one connected module group. Switches, point motors, transformer and additional wiring are not included. The scale ruler in one photograph is for size reference only.
