HO Scale Freight Cars Explained: Boxcars, Hoppers, Tank Cars and More

A boxcar, a covered hopper and a tank car answer different freight-handling problems. Learning to recognize those differences makes it easier to choose HO rolling stock that has a job on your railroad. Start with what a business ships or receives, then choose a car suited to that traffic and your layout.

You do not need one of every type to build an interesting train. A few cars serving a warehouse or bulk-material customer can give a small switching layout a clear purpose. The car's shape helps explain the work; its exact model specifications determine whether it will run where you need it.

Read the body shape, then think about the load

The following distinctions describe full-size North American freight equipment. They explain the model's purpose, but do not imply that a miniature has working doors, discharge gates or a removable load.

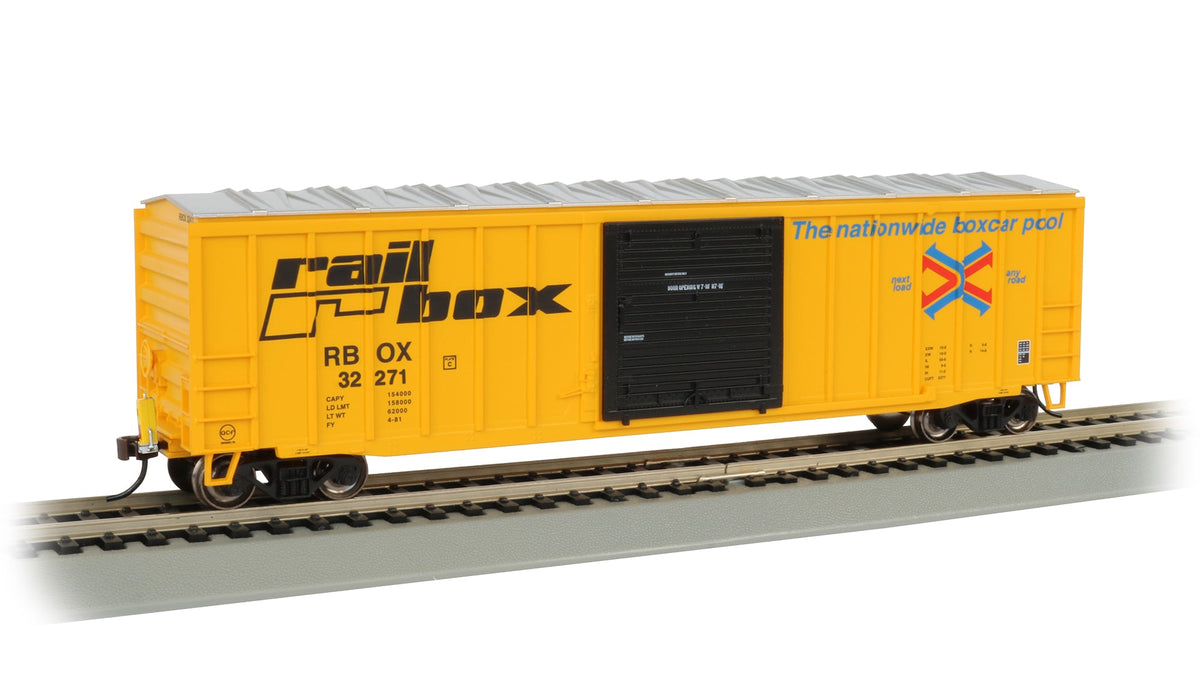

Boxcar: an enclosed body with side doors

Boxcars handle a range of crated, bagged and palletized goods. Their enclosed bodies distinguish them from open cars, while door arrangement and interior equipment vary with the service.

Covered hopper: roof loading hatches and outlets below

Covered hoppers carry suitable dry bulk products that need protection from weather or contamination. The material enters through the roof and leaves through the lower outlets. Hatch, outlet and lining arrangements help determine the appropriate commodity.

Open-top hopper: an exposed load above discharge bays

Open hoppers carry weather-tolerant bulk materials such as coal or aggregate. Look for the sloping lower body and unloading arrangement. An open top alone does not make a car a hopper.

Gondola: an open body with a generally flat floor

Plain gondolas carry loads such as scrap, metal products and railroad ties. Compare the floor and sides with a hopper rather than identifying both simply as open freight cars.

CSX's railroad-equipment descriptions illustrate these body and loading differences. For modeling, they help you plan a customer's loading area instead of placing any available car beside any building.

Other shapes solve more specific jobs

A tank car carries compatible liquid or compressed commodities in a specialized vessel. The tank's fittings and construction matter; a cylindrical body is not evidence that every tank car can carry the same cargo.

A flatcar provides an open deck for appropriate loads. A centerbeam adds a central structure for bundled building materials, while intermodal equipment carries containers or trailers. A refrigerated boxcar controls the temperature of perishable freight. Union Pacific's equipment guide provides a useful reference for these roles.

Choose the traffic before adding a scenic load. For example, a lumber customer suggests different cars and handling space from a business receiving bulk liquid. If you are recreating a real place, use photographs of that customer and period to refine the choice. A general cargo match is a starting point, not proof of an exact historical train.

Compare a real HO boxcar and covered hopper

Great Northern #2357: an enclosed-car example

The Bachmann 16001 Great Northern #2357 boxcar represents a 40-foot car in HO scale. Bachmann's exact 16001 specifications list opening sliding doors, metal wheels and E-Z Mate Mark II couplers. The model is listed as 6.5 inches long.

That last dimension matters when planning a siding. “40-foot” names the represented car; it is not the length of the miniature. Use the listed model dimensions and confirm the coupled length of your actual cars when working out how many fit between clearance points.

CSX #256439: a covered bulk-car example

The Bachmann 17501 CSX #256439 Center-Flow hopper is an HO model of a 56-foot, four-bay covered hopper. Bachmann's 17501 description identifies the prototype type with fine granular traffic, including plastic pellets and animal feed. The model has metal wheels and E-Z Mate Mark II couplers; its listed length is 8.25 inches.

These examples explain different freight jobs; their railroad names alone do not prove they belong in the same period or consist. Check the exact lettering, car design and date evidence when assembling a historically specific fleet.

Check the miniature's running equipment separately

Correct HO scale is only the first compatibility check. Confirm the exact car's curve requirements, coupler arrangement and dimensions. Test the route through turnouts and opposing curves with the intended locomotive and neighboring cars, including pushing moves if you plan to switch sidings.

Couplers need to engage, sit at compatible heights and move without binding. A matching-looking knuckle does not establish that the complete installation works. MM's model-train coupler compatibility and height guide covers those checks.

If a car drags or derails, inspect wheel gauge, free rolling, truck movement and coupler clearance before adding weight. The NMRA car-weight guidance gives HO a recommended starting weight of one ounce plus half an ounce per inch of car-body length. A six-inch body therefore gives a four-ounce recommendation. Measure the body in actual model inches; do not substitute the prototype's nominal length or shipping-package weight.

That is a recommended practice, not a reason to add weight blindly. Extra weight increases the work the locomotive must do, and a poorly moving truck or wheelset still needs attention. If you use removable scenic loads, consider their added weight and secure them without interfering with the running gear.
