Bachmann HO New York Central #605699 Gondola: Item 17219 Guide

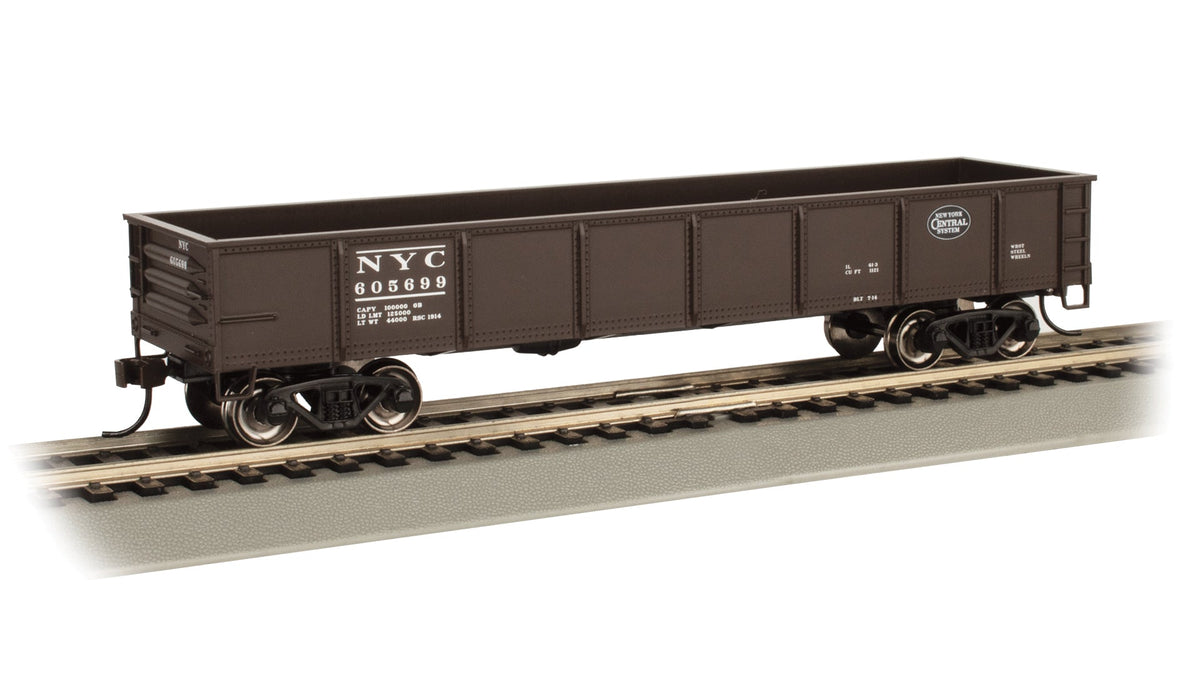

Bachmann HO Scale 40-Foot Gondola – New York Central #605699 is Bachmann model 17219, store SKU BAC17219, UPC 022899172194. This guide focuses on identifying this exact New York Central release and using its published dimensions and operating details when planning an HO freight consist, siding, or display. The railroad number #605699 and manufacturer model number 17219 are different identifiers and should both be retained.

Model 17219: published specifications

Bachmann identifies item 17219 as HO scale, 1:87. Its published model measurements are 6 inches long × 1.5 inches wide × 1.5 inches high. The manufacturer lists a detailed painted body with precision graphics, a detailed underframe, a separately applied brake wheel, magnetically operated E-Z Mate Mark II couplers, trucks with see-through sideframes, and blackened metal wheels with RP25 contours. These are the item-specific features to use when comparing this release with other gondolas.

The model is marked New York Central #605699. That number is useful for a roster, but it does not by itself establish the prototype car’s date or service assignment. Bachmann item 17219 identifies the catalog release; store SKU BAC17219 and UPC 022899172194 give additional exact-match checks when you save the listing or compare packaging.

Plan track and display space with a real check

The 6 × 1.5 × 1.5-inch product measurements help estimate shelf and display-case space. For actual track planning, measure the model with couplers as assembled if the available clearance is tight. The published model length may not represent the outermost coupler-to-coupler measurement. Check a siding between bumpers, close-set structures, platform edges, and storage trays with the car itself.

HO’s 1:87 scale makes the intended track and accessory family clear, but it does not guarantee that every HO layout has enough curve, turnout, or structure clearance. Place the car on a straight section first, then roll it slowly through the sharpest curve and turnout on its route. Watch for trucks or couplers contacting scenery and for wheels that lift or bind. This quick test is especially valuable when the car is part of a close-coupled consist.

Use the open car to tell a freight story

A gondola has an open top and containing sides, so it can represent cargo loaded from above or freight that does not need a roof. Bachmann’s general description names steel plates and coils, ballast, scrap metal, and oversized items such as track segments as examples of gondola freight. That description explains the type, not the contents of this particular model. The live listing and package should be checked for what is included.

For a layout scene, the New York Central #605699 car can run empty, carry a removable load, or appear in a yard move that makes use of its open body. Make any added load stable, removable when useful, and clear of the wheels and coupler mechanisms. Recheck bridge, tunnel, and case height after loading: the 1.5-inch published height applies to the model without an added load.

When the scene aims at a particular historical period, verify the railroad and road-number context from a railroad source before assigning the car to a dated train. The item name provides an exact model identity; it does not replace historical research about a prototype assignment.

Check couplers and trucks on the layout

The E-Z Mate Mark II couplers are listed as magnetically operated. Test the car over the layout’s actual uncoupling ramp or magnet at low speed and in both directions. Check coupler height, swing, and trip-pin clearance on this individual model. A compatible coupler family is helpful, but the installed trackside mechanism and each car’s adjustment determine the result.

The blackened metal wheels use RP25 contours, and the trucks have see-through sideframes. Before regular service, check that each wheel turns freely and sits correctly in its truck. Run the car through curves and turnouts slowly. If it wobbles, binds, or lifts a wheel, isolate that issue before adding the car to a longer train. Handle the car by its body or underframe to protect the separately applied brake wheel.

Save an accurate collection record

Use an entry such as “Bachmann 17219 / BAC17219; New York Central #605699; HO 1:87; 6 × 1.5 × 1.5 in.; E-Z Mate Mark II couplers; blackened metal RP25 wheels.” Add the purchase date, observed condition, packaging notes, and your own clearance and uncoupling test results. This keeps manufacturer claims separate from your experience with the particular car in your collection.

Compare related HO gondolas

For other Bachmann gondola releases, see the MONON #3301 guide for item 17218 and the Great Northern #75733 guide for item 17211. For a wider overview of open cars and other freight-car types, use HO scale freight cars explained.

Quick check before purchase or operation

• Match New York Central #605699 with Bachmann item 17219, SKU BAC17219, or UPC 022899172194.
• Confirm HO scale (1:87) matches the layout.
• Plan for the published 6 × 1.5 × 1.5-inch dimensions and verify assembled coupler clearance.
• Inspect the brake wheel and detailed trucks; test the couplers and RP25 wheels on your track.
• Check current price, availability, and exact package contents on the live product listing.

In short: Bachmann 17219 is the HO New York Central gondola marked #605699. Its published dimensions and listed hardware make it easy to identify and plan for; a physical clearance and coupler test confirms whether it works on a particular layout.

See Bachmann HO Scale 40-Foot Gondola – New York Central #605699, model 17219

Exact-item facts checked against the current Shopify product record and Bachmann’s product listing for model 17219 on October 18, 2026. Current price and availability are controlled by the live product page.
