Model Train Dead Spots: Feeders, Rail Joiners and Power Troubleshooting

Published by

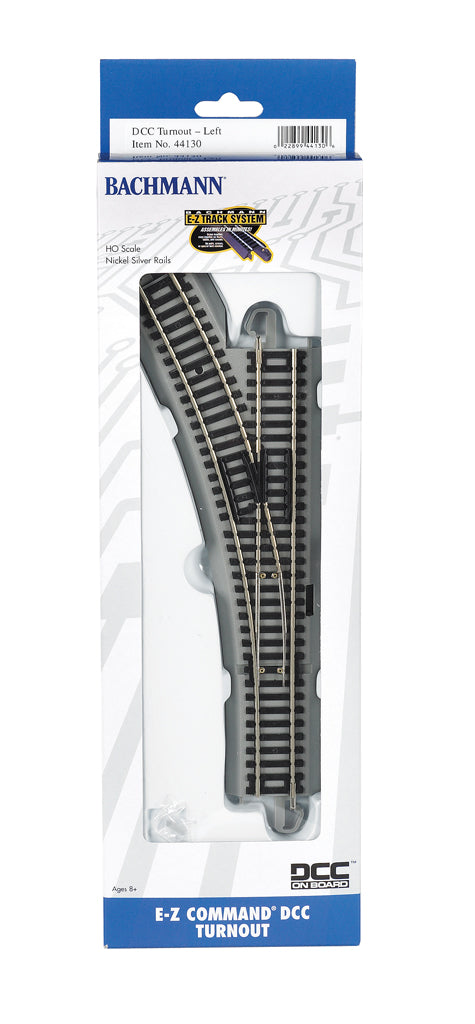

Model railroad track and turnout representing feeder and dead-spot troubleshooting

If several locomotives hesitate or stop at the same exact place, the problem may be power distribution rather than dirty wheels. A systematic test can identify whether the weak point is a rail joint, feeder, turnout or isolated section.

Start with a known-good locomotive

Use a locomotive that runs smoothly elsewhere. Approach the problem area slowly from both directions. If the stall is repeatable at the same physical spot, mark that location.

Inspect rail joiners mechanically

Rail joiners align track and may also carry current, but they can loosen, oxidize or fail to make reliable contact. A joint can look connected while delivering inconsistent power.

Feeders reduce dependence on joiners

Many permanent layouts use feeder wires from a bus to multiple rail sections rather than asking a long chain of joiners to carry all current. The exact spacing and wiring method depend on layout size, control system and track design.

Turnouts can create special electrical zones

Points, closure rails and frogs may be powered differently depending on turnout design. A stall that occurs only on one turnout may be caused by wheelbase, frog polarity, point contact or dirty contact surfaces.

Do not confuse a short circuit with a dead spot

A dead section may simply lose voltage. A short often causes the command station or power pack to trip, reset or indicate an overload. The troubleshooting path is different, so watch what the controller does when the locomotive reaches the problem area.

Test before adding scenery

Run locomotives slowly over every route, turnout and joint before ballast and scenery make wiring changes harder. Reliable track power is part of layout construction, not a finishing detail.

Read MM’s DC vs DCC guide and E-Z Track guide for related planning. Browse model train inventory for compatible track and equipment.

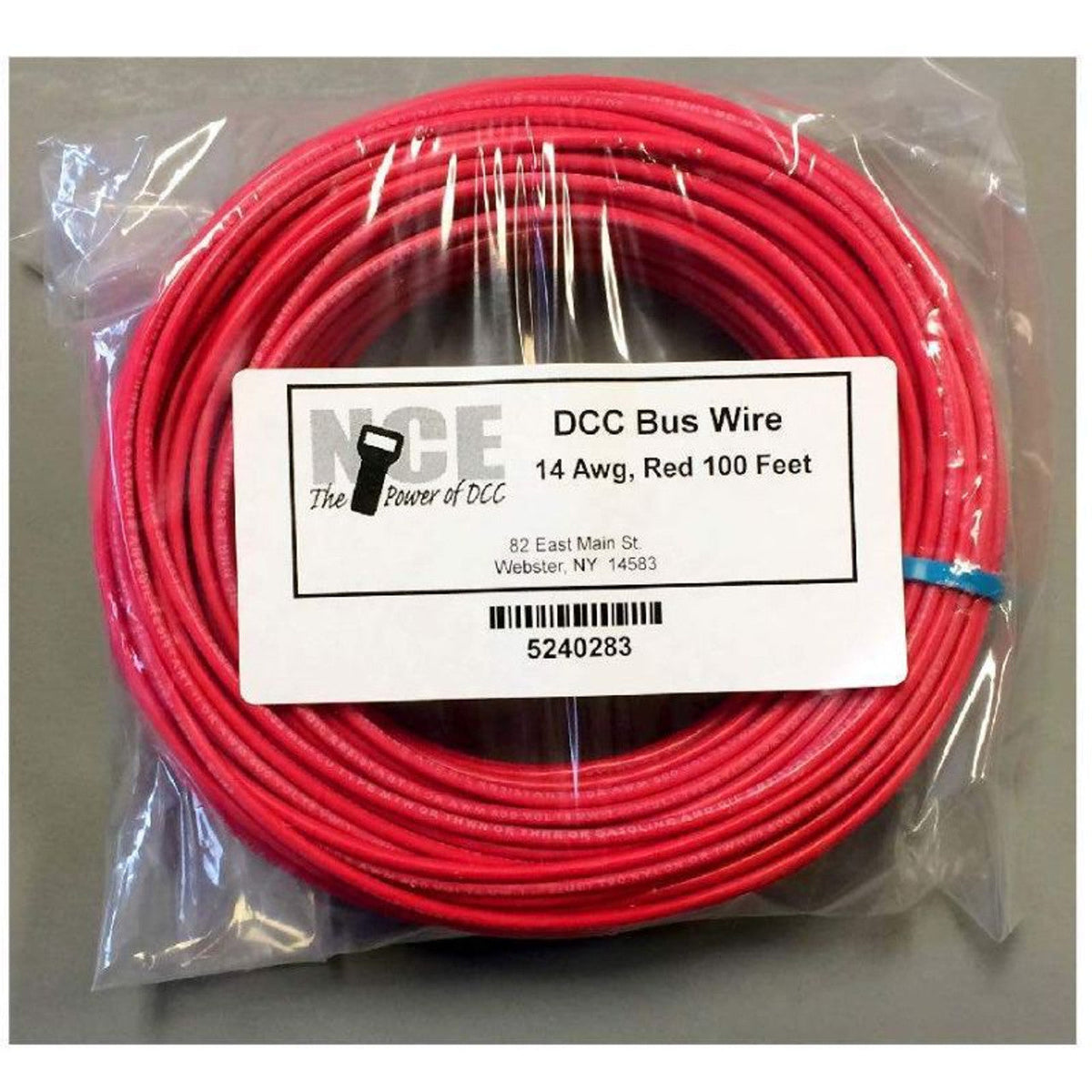

Current Muncle Mikes Model Train examples
